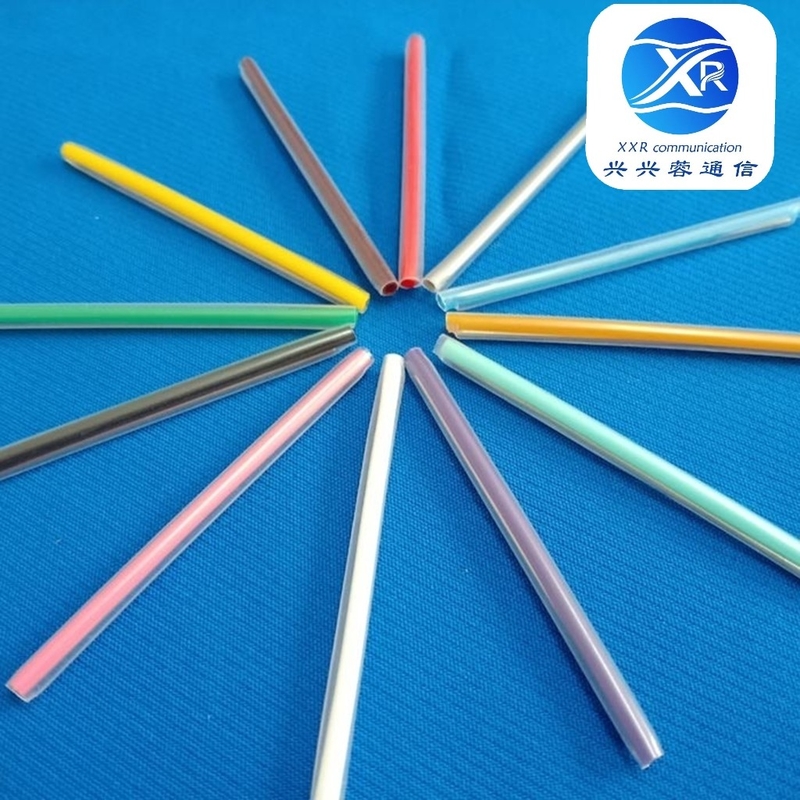

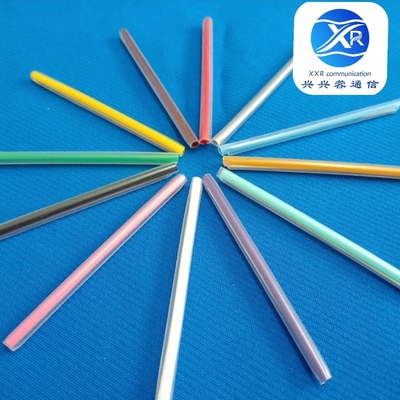

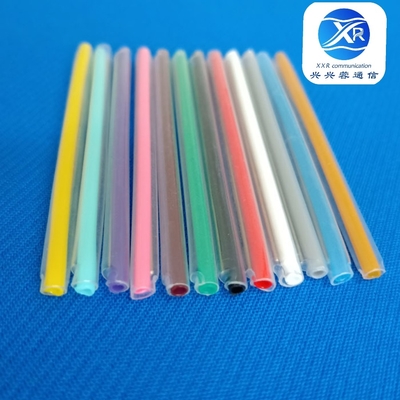

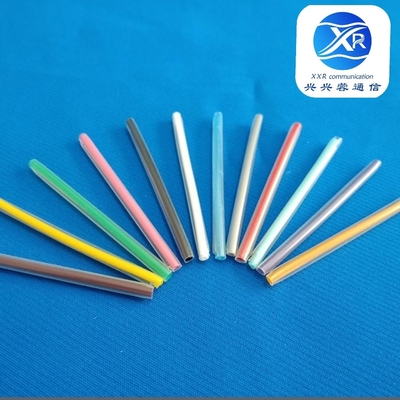

Colorful Fiber Optic Splice Sleeve

Name: Colorful Fiber Optic Splice Sleeve
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-60T
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-60T
MOQ:	50,000pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Colorful Single Fiber Optic Splice Sleeve

Steel Rod:

SUS304

Spec.:

1.0*60 MM

OD After Shrinking:

2.5MM

Length:

60MM

Color:

Yellow,green,orange,red,white Etc.

Used For:

Fiber Optic Splicing Closures

Packing:

100 Pcs

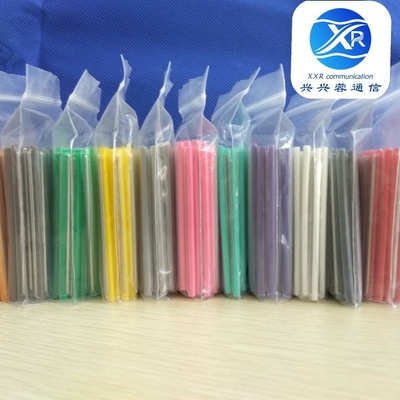

Packaging Details:

100 pcs/pack

Supply Ability:

200K pcs/day

Highlight:

2.5mm Fiber Optic Splice Sleeve

SGS Fiber Optic Splice Sleeve

60mm Fiber Splice Protection Sleeves

Product Description

FTTH & FTTX Colorful Single Fiber Optic Splice Sleeve

Fiber optic splice sleeve is also called fiber heat shrink tube, which are made of PE or EVA material, with preshunk at both ends.

The outer tube is heat shrinkable tube made of PE and the innter tube is hot melt tube made of EVA .

The sleeve is designed according to fiber splice tray, its length are 40mm, 45mm and 60mm, also we are able to produce other specifications as per customer's special requirement.

The colorful fiber optic splice sleeve usually indicates inner tube, and the outer tube is clear as usual. To choose this kind of sleeve is to identify fibers.

Application: optical communication field.

Features: parts splicing, enhanced protection, supporting positioning, reliable.

Used for: ODF/patch panel, optical fiber distribution box, termination box, splice tray, splice closures, cross-connecting cabinet etc.

Specifications:

Part No.	Spec. (mm)	Seel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-60T	1.0*60	1.0	60	2.5	60	1.8
OFSS-54T	1.0*54	1.0	54	2.5	54	1.8
OFSS-45T	1.0*45	1.0	45	2.5	45	1.8
OFSS-40T	1.0*40	1.0	40	2.5	40	1.8
OFSS-60T	1.0*60	1.2	60	2.7	60	1.7
OFSS-54T	1.0*54	1.2	54	2.7	54	1.7
OFSS-45T	1.0*45	1.2	45	2.7	45	1.7
OFSS-40T	1.0*40	1.2	40	2.7	40	1.7

Colorful Fiber Optic Splice Sleeve 0

Colorful Fiber Optic Splice Sleeve 1
