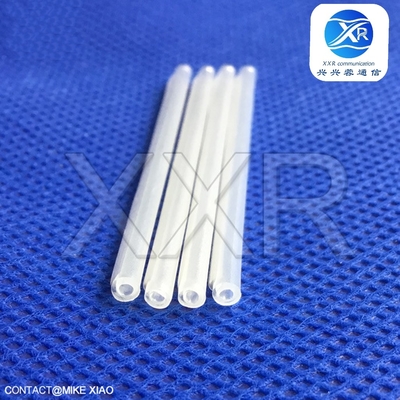

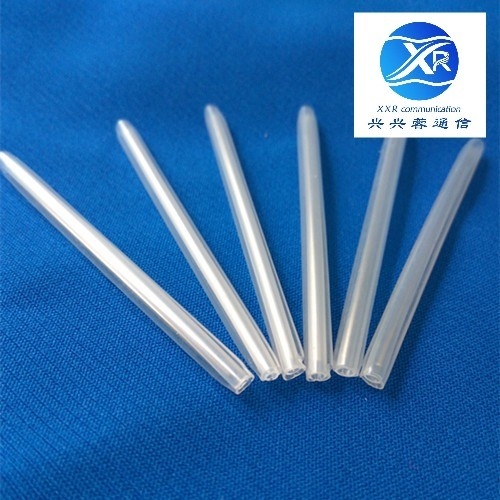

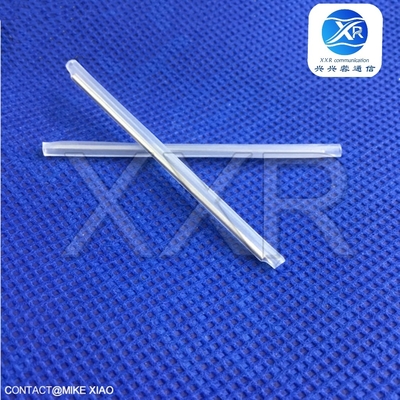

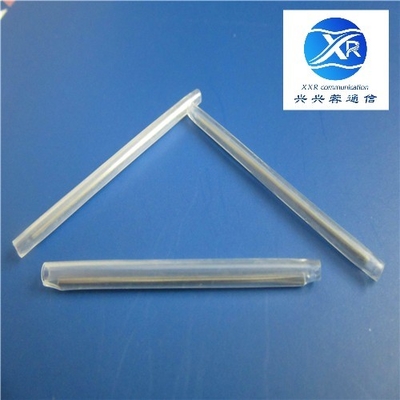

40mm Clear Heat Shrink Tube

Name: 40mm Clear Heat Shrink Tube
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-40R
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-40R
MOQ:	50,000pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Material:

PE/EVA

Supporting Rod:

2-Quartz/Glass

Length:

40 MM

OD After Shrinking:

4.7*4.7MM

Fiber Count:

6 Fibers

Color:

CLear/Blue

Use:

FTTH & FTTx

Packing:

24 Pcs

Packaging Details:

24 pcs/pack

Supply Ability:

200K pcs/day

Highlight:

40mm Clear Heat Shrink Tube

PE Clear Heat Shrink Tube

4.7mm fiber splicing sleeve

Product Description

QUARTZ RIBBON OPTICAL FIBER SPLICING SLEEVE

Founded in 2013, XXR is a global leading manufacturing in fiber optic splice sleeve. We are manufacturing sorts of sleeves with different specifications.

The sleeve are divided into two types, for the first one is single fiber optic splice sleeve, and for the other is ribbon fiber optic sleeve.

For single fiber optic splice sleeve, the regular use sleeves are with 40mm, 45mm and 60mm long, stainless steel rod.

And for the ribbon fiber sleeve, the regular use length is 40mm, with single or double ceramic rod or quartz rod, it can accomodate 4 fibers, 6 fibers,8fibers,12fibers.

Application: optical communication field.

Features: parts splicing, enhanced protection, supporting positioning, reliable.

Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.

Specifications:

Part No.	Spec. (mm)	Ceramic rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40R	12-FIBER	4*2	40	4.8*4.35	40	3.9*1.8
OFSS-40R	8-FIBER	4*2	40	4.7*4.1	40	3.2*1.5
OFSS-40R	6-FIBER	3*1.5	40	3.7*3.7	40	3.1*1.7
OFSS-40R	4-FIBER	3*1.5	40	3.6*3.6	40	3.2*1.6

Ceramic rod:

40mm Clear Heat Shrink Tube 0

Quartz or glass rod:

40mm Clear Heat Shrink Tube 1

40mm Clear Heat Shrink Tube 2
