6cm Fiber Optic Cable Protection Sleeve For Optical Communication Field

Brand Name: XXR
Model Number: OFSS-60C
MOQ: 50,000 pcs
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS
Name:
FTTH Drop Cable Protection Sleeve
Tube Material:
PE/EVA
Spec.:
1.0*60 MM
Steel MateriSUS304al:
SUS304
Steel Diameter:
1.0MM
OD After Shrinking:
3.8MM
Color:
Clear
Suitable For:
FTTH Drop Cable Connecting Protection
Packaging Details:
100 pcs/pack
Supply Ability:
200K pcs/day
Highlight:

6cm Fiber Optic Cable Protection Sleeve

,

3.8mm Fiber Optic Cable Protection Sleeve

,

SUS304 fiber protection tube

Product Description
FTTH OPTICAL CABLE JOINT SLEEVE FOR PROTECTION BOX

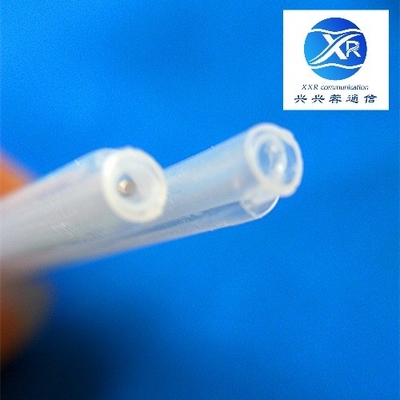

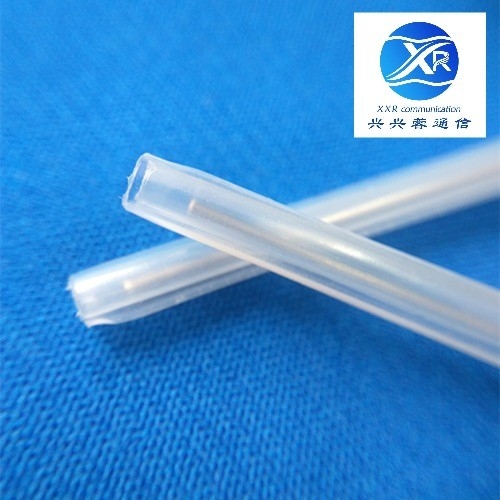

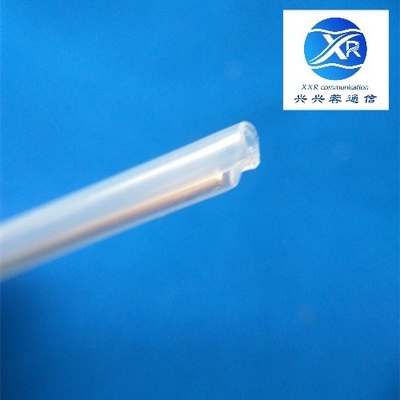

The sleeve consists of heat shrink tube as outer tube, hot-melt tube as inner tube and stainless steel rod, it is a splicing component for enhancing protection or
supporting positioning of optical fiber splicing parts.

Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning, reliable.
Used for: FTTH optical cable joint protection box.

Specification:



Part No. Spec. (mm)

Seel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

L.(mm)

ID

(mm)
OFSS-60C 1.0*60 1.0 60 3.8 60 3.8
OFSS-55C 1.0*55 1.0 55 3.8 55 3.8
OFSS-50C 1.0*50 1.0 50 3.8 50 3.8
OFSS-45C 1.0*45 1.0 45 3.8 45

3.8
OFSS-60C 1.0*60 1.0 60 3.5 60 3.8
OFSS-55C 1.0*55 1.0 55 3.5 55 3.8
OFSS-50C 1.0*50 1.0 50 3.5 50 3.8
OFSS-45C 1.0*45 1.0 45 3.5 45 3.8



Matching for:



6cm Fiber Optic Cable Protection Sleeve For Optical Communication Field 0

6cm Fiber Optic Cable Protection Sleeve For Optical Communication Field 1

Protection Box:

6cm Fiber Optic Cable Protection Sleeve For Optical Communication Field 2



6cm Fiber Optic Cable Protection Sleeve For Optical Communication Field 3



6cm Fiber Optic Cable Protection Sleeve For Optical Communication Field 4
