FTTH OPTICAL CABLE JOINT SLEEVE FOR PROTECTION BOX

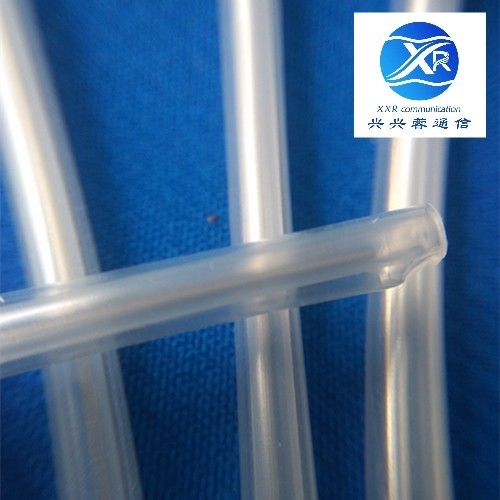

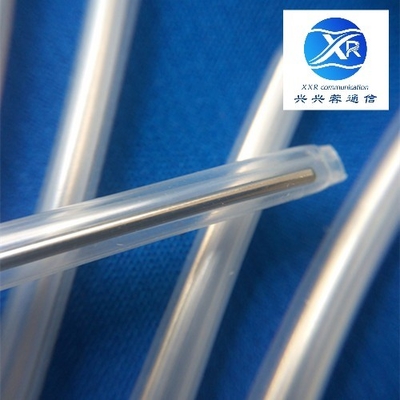

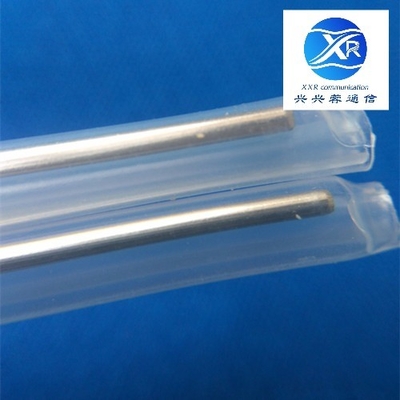

Optical cable protection is made of PE/EVA , with stainless steel rod diameter 1.0mm, Shrunk OD 3.5mm,3.6mm and 3.8mm. It's shape and design almost same as single fiber splice sleeve, just the outer diameter after shrinking and inner diameter are different.
The cable protection sleeve is usually installed in the protection box for protecting cable joint .
Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning, reliable.
Used for: FTTH optical cable joint protection box.
|
| Part No. | Spec. (mm) |
Seel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-60C | 60-2 | 1.0 | 60 | 3.6 | 60 | 3.5 |
| OFSS-55C | 55-2 | 1.0 | 55 | 3.6 | 55 | 3.5 |
| OFSS-50C | 50-2 | 1.0 | 50 | 3.6 | 50 | 3.5 |
| OFSS-45C | 45-2 | 1.0 | 45 | 3.6 | 45 |
3.5 |
| OFSS-60C | 60-1 | 1.0 | 60 | 3.5 | 60 | 3.8 |
| OFSS-55C | 55-1 | 1.0 | 55 | 3.5 | 55 | 3.8 |
| OFSS-50C | 50-1 | 1.0 | 50 | 3.5 | 50 | 3.8 |
| OFSS-45C | 45-1 | 1.0 | 45 | 3.5 | 45 | 3.8 |
