Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing

Name

Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing

Brand Name:	XXR
Model Number:	BFPT
MOQ:	1 roll
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Ф5mm Round & Ribbon Shape Bare Fiber Protection Tube

Spec.:

3*5 MM

Shape:

Round/Rectangular/Oval

Operating Temperature:

-55 ℃ ~ +100 ℃

Min.Shrink Temperature:

120 ℃

Atmospheric Pressure:

70 ~ 106 Kpa

Suitable For:

Fiber Splice Closure

Color:

Clear

Packaging Details:

100 / 200 meters/ roll

Supply Ability:

1000000 Meters per Week

Highlight:

Ribbon Fiber Protection Tube

,

Round Fiber Protection Tube

,

5mm Fiber Optic Protection Tubing

Product Description

XXR Bare Fiber Protection Tube

Bare fiber protection tube, designed for the protection of fiber that

be stripped of housing,mainly used for ODF, Optical Distribution Box,

Fiber Splice Closure, Optical cross-connecting cabinet.

Shape: . Round/Rectangular/Oval

Property:

Operating temperature: -55 ℃ ~ +100 ℃

Min.Shrink temperature: 120 ℃

Atmospheric pressure: 70 ~ 106 Kpa

Material: Cross-linked polyolefin

Feature: clear color, not easy to break, with excellent performance.

Technical data:

Properties	Test method	Value
Tensile strength (MPa)	ASTM D 2671	≥10.4
Elongation at break (%)	ASTM D 2671	≥200
Withstand voltage (300v)	UL 224	1500V,1MIN
Dielectric strength (KV/MM)	ASTM D 149	≥15
Volume resistivity (Ω.cm)	IEC 60093	≥1014
Length change ratio (%)	ASTM D 2671	±5%

Round/Rectangular/Oval Shape

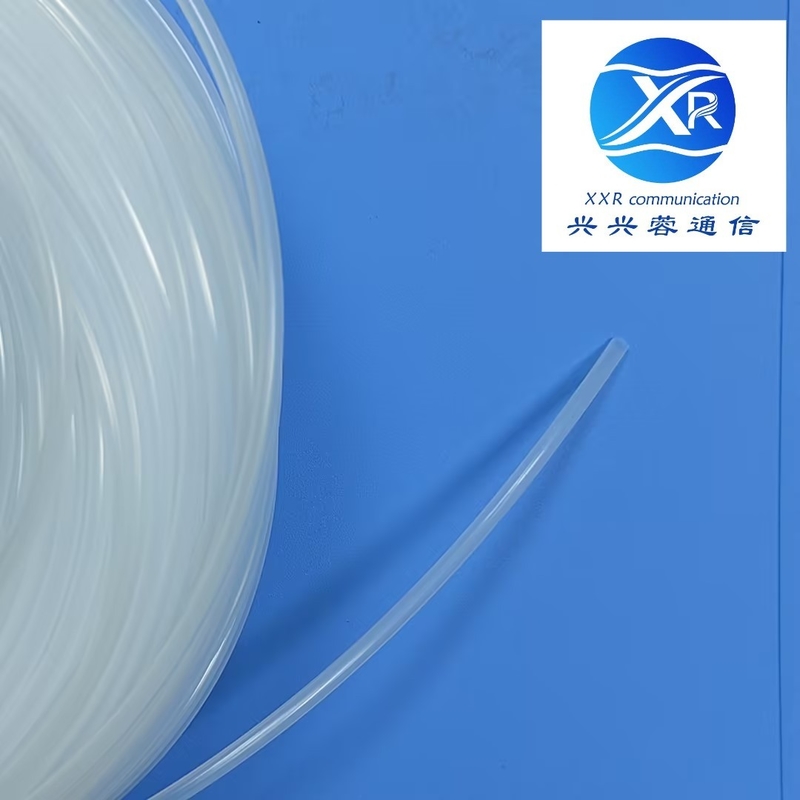

Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing 0

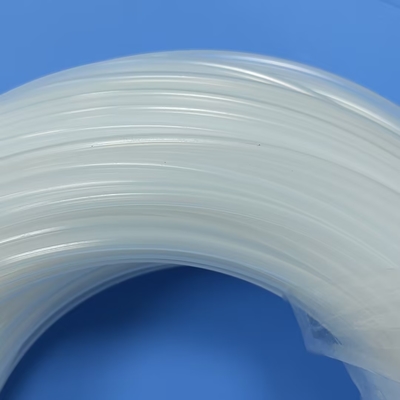

Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing 1

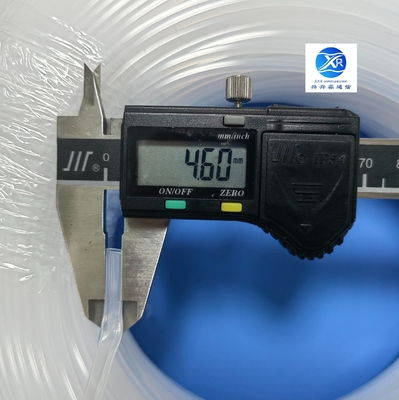

Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing 2

Tags:

Round Fiber Protection Tube

5mm Fiber Optic Protection Tubing

Ribbon Fiber Protection Tube
