Heat Shrinkable Single Fiber Splice Protector For Optical Closures

Name

Heat Shrinkable Single Fiber Splice Protector For Optical Closures

Brand Name:	XXR
Model Number:	OFSS-60T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

60mm Single Fiber Splice Sleeve

Suitable For:

Splice Closure

Spec.:

1.2*60 MM

Steel Diameter:

1.2MM

Length:

60MM

OD After Shrinking:

2.5MM

Ends Sealing:

Half

Color:

Transparent

Packaging Details:

12 pcs/pack

Supply Ability:

200K pcs/day

Highlight:

2.36in Fiber Splice Protector

,

Transparent Fiber Splice Protector

,

Heat Shrinkable fiber splice sleeves

Product Description

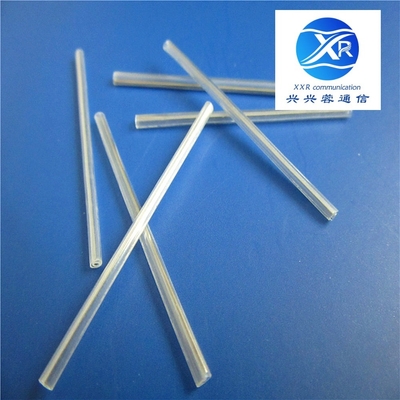

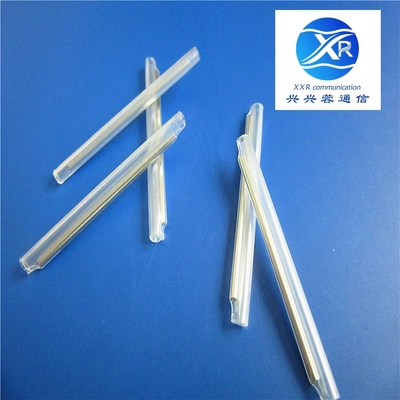

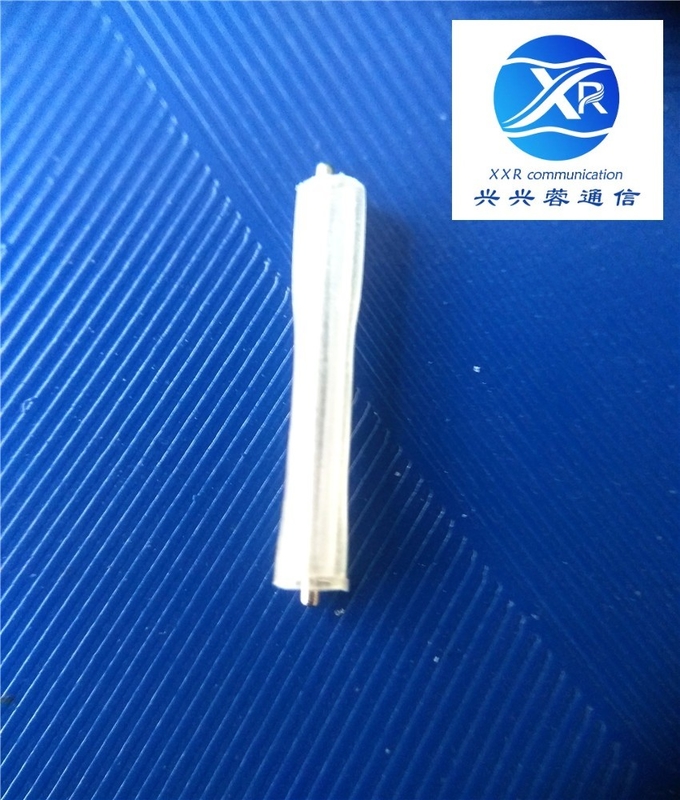

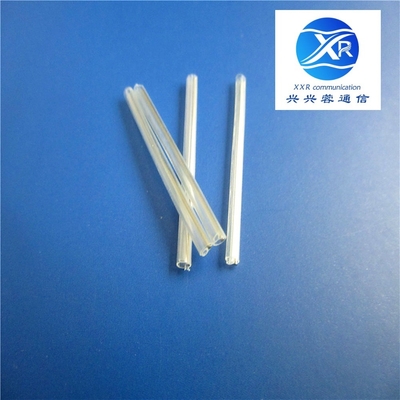

Heat Shrinkable Single Optical Fiber Splicing Protector Sleeves For Optical Closures

60MM splice sleeve is produced by XXR, who is committed to manufacturing

sorts of fiber sleeves. The company with ten advanced automatic-assembly

equipment is capable to produce hundred and eighty thousand of sleeves

per day and quality guaranteed.

Splice sleeve is also called heat shrinkable tube, made of PE and EVA,

prshrunk at both ends during production.

It's regular sizes are 40mm, 45mm, and 60mm long, the reinforced member

adopts stainless steel with diameter 1.5mm,1.2mm,1.0mm,0.8mm,0.5mm and so on.

Generally, the fiber sleeve is used for fiber splicing in the FTTH & FTTx project.

Function: it is a splicing component for enhancing protection or supporting

positioning of optical fiber splicing. In a word, it is for optical fiber fusion protection.

Application: optical communication field.

Features: parts splicing, enhanced protection, supporting positioning, reliable.

Specification:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

Matching for:

Heat Shrinkable Single Fiber Splice Protector For Optical Closures 0

Heat Shrinkable Single Fiber Splice Protector For Optical Closures 1

Heat Shrinkable Single Fiber Splice Protector For Optical Closures 2

Heat Shrinkable Single Fiber Splice Protector For Optical Closures 3

Tags:

1.5mm Sleeve Protector Fiber Optic

RoHS Heat Shrink Splice Protector

1.57in Heat Shrink Splice Protector
