| Brand Name: | XXR |
| Model Number: | OFSS-40M |
| MOQ: | 50,000 pcs |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, L/C |

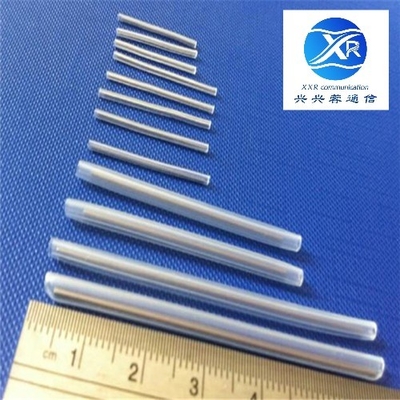

Heat shrink tube, it is a splicing component for enhancing protection or supporting positioning of optical fiber splicing parts.
Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning, reliable.

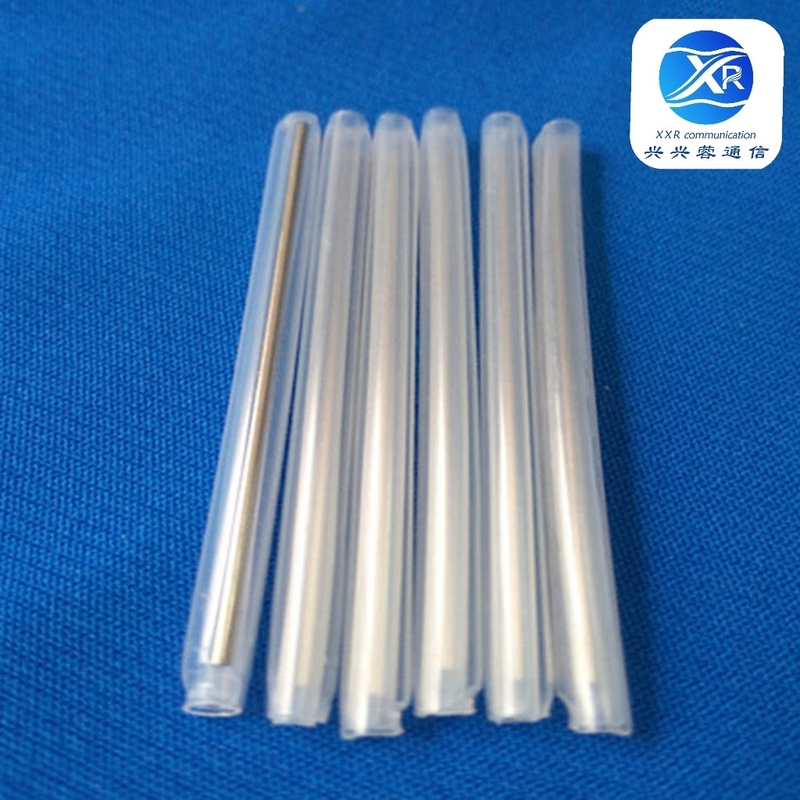

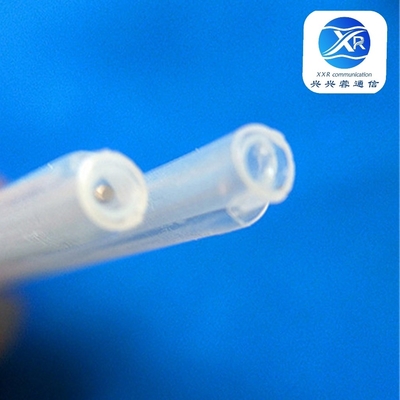

Parts: outer tube, inner tube and steel rod. The outer tube is heat shrink tube and the inner tube is fusion tube.The steel rod usully adopts stainless steel 304 or 201, and some adopts ceramics. Generally, it depends on use condition.
Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.
Specifications:
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40M | 0.5 * 40 | 0.5 | 40 | 1.4 | 40 | ≥1.2 |
| OFSS-45M | 0.5 * 45 | 0.5 | 45 | 1.4 | 45 | ≥1.2 |
