6 Cores Ribbon Fiber Splice Sleeve Protector Shrunk 4.7x4.7mm

Brand Name: XXR
Model Number: 6F-OFSS-40M
MOQ: 50,000 Pcs
Price: Negotiable
Delivery Time: 5-7 Days
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS
Name:
6 Cores Fiber Splice Protector
Material:
PE
Length:
40MM
Suitable For:
6 Fibers
Rod:
Double Ceramics
O.D After Shrinking:
4.7*4.7 MM
Package:
Ziplock Plastic Bag
Color:
Transparent
Packaging Details:
24 pcs
Supply Ability:
200K PCS/DAY
Highlight:

6 Cores Ribbon Fiber Splice Sleeve

,

PE Ribbon Fiber Splice Sleeve

,

40mm fibre splice protectors

Product Description
40mm long Double Ceramic Rod Shrunk OD4.7*4.7mm 6 Cores Ribbon Fiber Splice Protector

Fiber splicing protector are usually divided into single fiber splice protector and ribbon fiber splice protector. The single fiber splicing protector is used for single fiber, and the ribbon fiber splicing protector is used for ribbon fibers.
Application: fiber splicing in optical communication field.
Mass type sleeve materials:
Hot melt tube
Ceramic reinforcement member
Heat shrinkable tube
Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.

Specification
Part No. L. (mm)

Steel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

I.D.(mm)
4F-OFSS-40 40±0.05 Single-3*1.5 40±0.05 3.6*3.6 3.2*1.6
6F-OFSS-40 40±0.05 Single-3*1.5 40±0.05 3.7*3.7 3.1*1.7
8F-OFSS-40 40±0.05 Single-4*2 40±0.05 4.7*4.1 3.2*1.5
12F-OFSS-40 40±0.05 Single-4*2 40±0.05 4.8*4.35 3.9*1.8
6F-OFSS-40 40±0.05 Double-3*1.5 40±0.05 4.7*4.7 2.7*1.6
12F-OFSS-40 40±0.05 Double-4*2 40±0.05 5.6*5.4 4.3*2.0

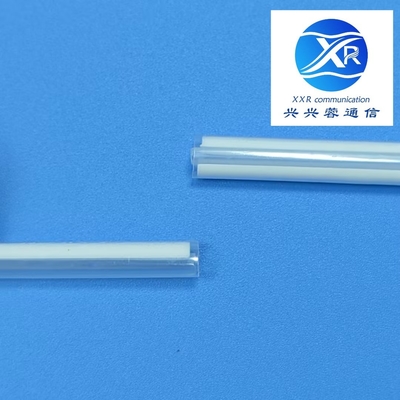

6 Cores Ribbon Fiber Splice Sleeve Protector Shrunk 4.7x4.7mm 0

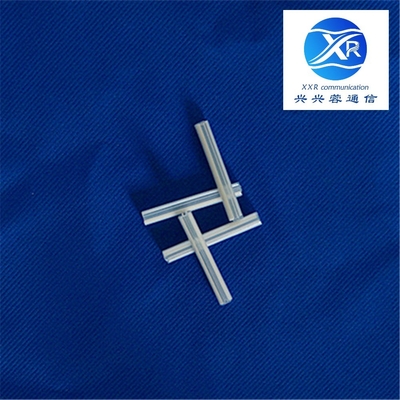

6 Cores Ribbon Fiber Splice Sleeve Protector Shrunk 4.7x4.7mm 1

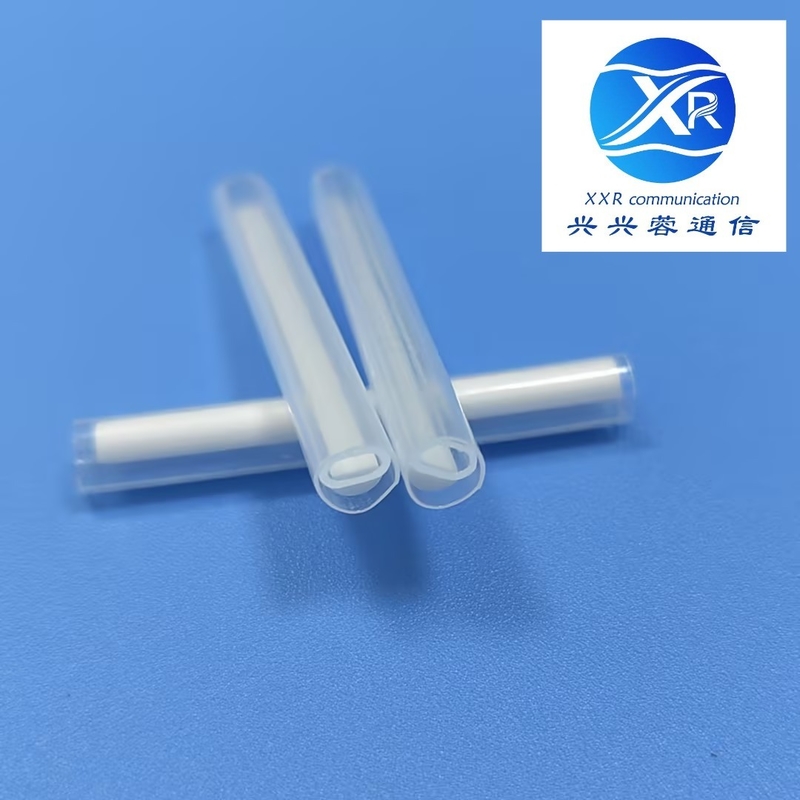

6 Cores Ribbon Fiber Splice Sleeve Protector Shrunk 4.7x4.7mm 2
