| Brand Name: | XXR |
| Model Number: | 12F-OFSS-40 |
| MOQ: | 50,000 PCS |
| Price: | Negotiable |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T, L/C |
Fiber sleeve is a splicing component for enhancing protection or supporting positioning of optical fiber splicing parts.

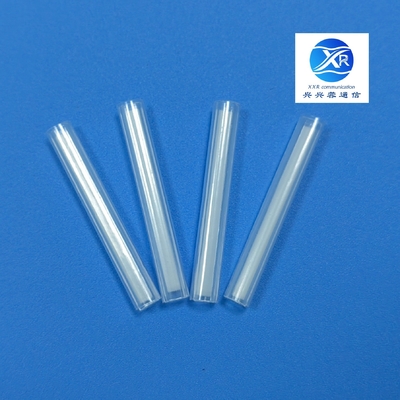

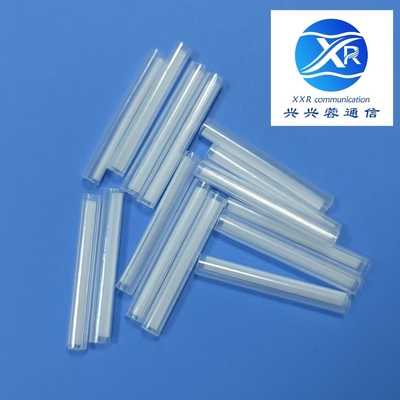

Ribbon Fiber Fiber Optic Protection Sleeve is 40mm,50mm and 60mm heat shrinkable sleeve for single fiber, and 6 cores,12 cores fiber optic protection sleeve for ribbon fiber cable.
The sleeve can be divided into two types (single sleeve and ribbon sleeve) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Ribbon sleeve means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for types).
Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning, reliable.
Parts: outer tube, inner tube and ceramic rod. The outer tube is heat shrink tube and the inner tube is fusion tube.The rod usully adopts ceramics and quartz. Generally, it depends on use condition.
Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.

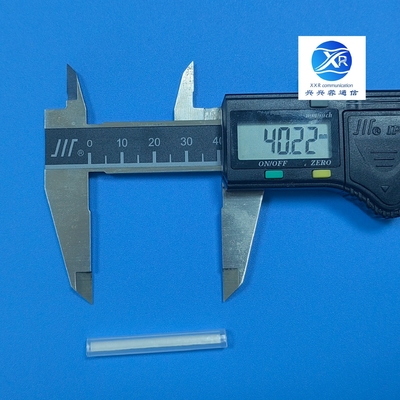

| Part No. | L. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube I.D.(mm) |
| 4F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.6*3.6 | 3.2*1.6 |
| 6F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.7*3.7 | 3.1*1.7 |
| 8F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.7*4.1 | 3.2*1.5 |
| 12F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.8*4.35 | 3.9*1.8 |
| 6F-OFSS-40 | 40±0.05 | Double-3*1.5 | 40±0.05 | 4.7*4.7 | 2.7*1.6 |
| 12F-OFSS-40 | 40±0.05 | Double-4*2 | 40±0.05 | 5.6*5.4 | 4.3*2.0 |
Video
Video
Video
Video
Video
Video
|
| Brand Name: | XXR |
| Model Number: | 12F-OFSS-40 |
| MOQ: | 50,000 PCS |
| Price: | Negotiable |
| Packaging Details: | 12 Pcs/Pack |
| Payment Terms: | T/T, L/C |
Fiber sleeve is a splicing component for enhancing protection or supporting positioning of optical fiber splicing parts.
Ribbon Fiber Fiber Optic Protection Sleeve is 40mm,50mm and 60mm heat shrinkable sleeve for single fiber, and 6 cores,12 cores fiber optic protection sleeve for ribbon fiber cable.
The sleeve can be divided into two types (single sleeve and ribbon sleeve) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Ribbon sleeve means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for types).
Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning, reliable.
Parts: outer tube, inner tube and ceramic rod. The outer tube is heat shrink tube and the inner tube is fusion tube.The rod usully adopts ceramics and quartz. Generally, it depends on use condition.
Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.
| Part No. | L. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube I.D.(mm) |
| 4F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.6*3.6 | 3.2*1.6 |
| 6F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.7*3.7 | 3.1*1.7 |
| 8F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.7*4.1 | 3.2*1.5 |
| 12F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.8*4.35 | 3.9*1.8 |
| 6F-OFSS-40 | 40±0.05 | Double-3*1.5 | 40±0.05 | 4.7*4.7 | 2.7*1.6 |
| 12F-OFSS-40 | 40±0.05 | Double-4*2 | 40±0.05 | 5.6*5.4 | 4.3*2.0 |
