| Brand Name: | XXR |
| Model Number: | OFSS-45T |
| MOQ: | 50,000 PCS |
| Price: | Negotiable |
| Delivery Time: | 5-7 DAYS |
| Payment Terms: | T/T, L/C |

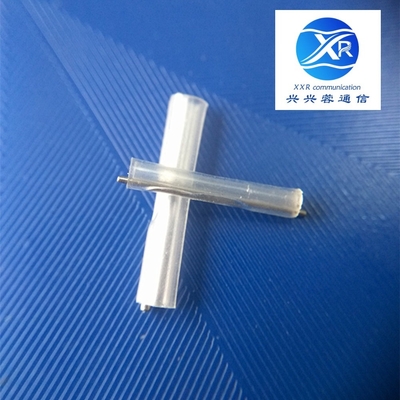

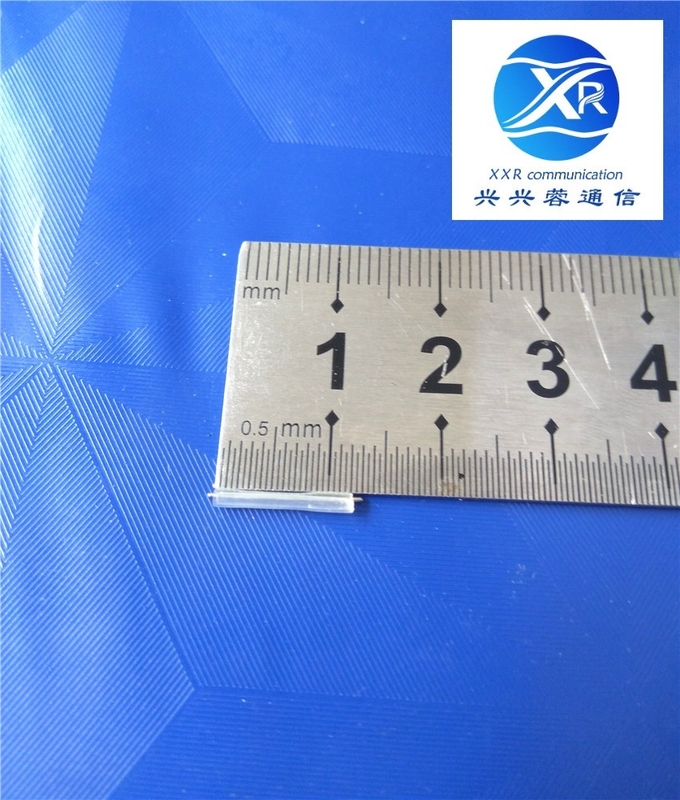

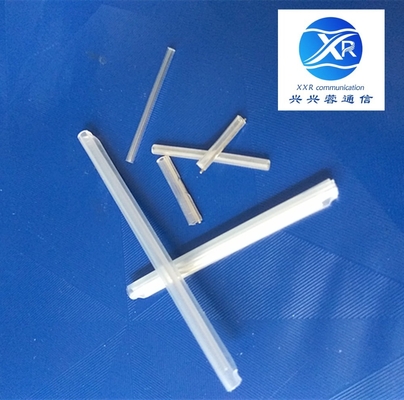

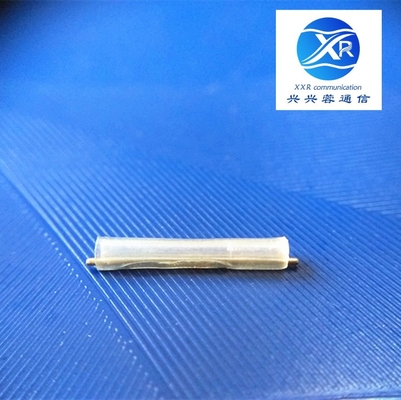

Micro Fiber Optic Heat Shrink Sleeve, 2.5mm Fiber Splice Protection Sleeves
Description
These color fiber optic fusion splice protection sleeves use reduced diameter components for a smaller finished product. The smaller diameter enables you to fit more splices into your existiong fiber optic splice trays.
Fusion splice protection sleeves provide vital protection at the fused juncture between two fusion spliced optical fibers.
Feature
Product Attributes
| Model No.: 30*0.5-1.4 | Brand: XXRTX |
| Package: 100 pcs/bag | Certification: ISO |
| Color: Clean | Usage: Optical Cable |
| Material: PE | Type: Heat Shrinkable |
Specification
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40T | 1.5 * 40 | 1.5 | 40 | 3.0 | 40 | ≥1.2 |
| OFSS-45T | 1.5 * 45 | 1.5 | 45 | 3.0 | 45 | ≥1.2 |
| OFSS-60T | 1.5 * 60 | 1.5 | 60 | 3.0 | 60 | ≥1.2 |
| OFSS-40T | 1.2 * 40 | 1.2 | 40 | 2.7 | 40 | ≥1.2 |
| OFSS-45T | 1.2 * 45 | 1.2 | 45 | 2.7 | 45 | ≥1.2 |
| OFSS-60T | 1.2 * 60 | 1.2 | 60 | 2.7 | 60 | ≥1.2 |
| OFSS-40T | 1.0 * 40 | 1.0 | 40 | 2.5 | 40 | ≥1.2 |
| OFSS-45T | 1.0 * 45 | 1.0 | 45 | 2.5 | 45 | ≥1.2 |
| OFSS-60T | 1.0 * 60 | 1.0 | 60 | 2.5 | 60 | ≥1.2 |
