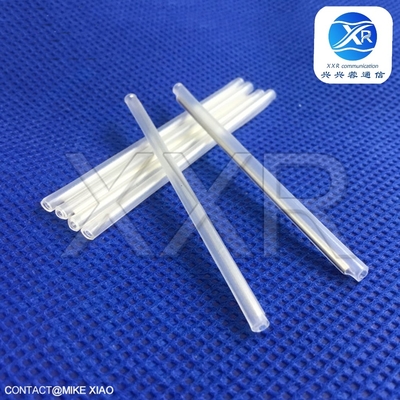

60mm Fiber Optic Splice Sleeve

Name: 60mm Fiber Optic Splice Sleeve
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-40M/60T
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-40M/60T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Small Clear Fiber Optic Protection Sleeve

Brand:

XXR

Steel Rod:

0.5MM

Use:

Termination Closure

Type:

Small

Length:

40MM 60MM

Color:

Clear

OD After Shrinking:

1.5MM

Packaging Details:

100 pcs

Supply Ability:

200K pcs/day

Highlight:

2.36in Fiber Optic Splice Sleeve

Reach Fiber Optic Splice Sleeve

SGS fiber protection tube

Product Description

40MM,60MM Small Fiber Optic Protection Sleeve for Termination Closures

Fiber sleeve: also called fiber optic splice protection sleeve or fiber protector. It is designed for

enhancing protection or supporting positioning of optical fiber splicing.

Composition: heat shrink tube, hot melt tube and steel rod or ceramic rod. The hot shrink tube is usually

made of PE or EVA, and the melt tube is EVA. As for the steel rod, is made of stainless steel 304 or 201.

XXR Communication Technology is specialized in manufacturing sorts of fiber splice sleeves for global fiber closure manufacturers.The company passed SGS and the products complied with RoHS and Reach.

The company has three advanced production lines, including steel rod production line, plastic tube production line and automatic-assembly production line.the capability of producing sleeves exceeds 200,000 pieces a day.

The splice sleeve's quality is strictly controled, all parts have to be seriously checked for outgoing. Since 2013, the company is famous for its high quality and gained much reputations.Numerious orders from all over the world come to XXR, who is aways insisting on high quality as its orientation of surrvival.

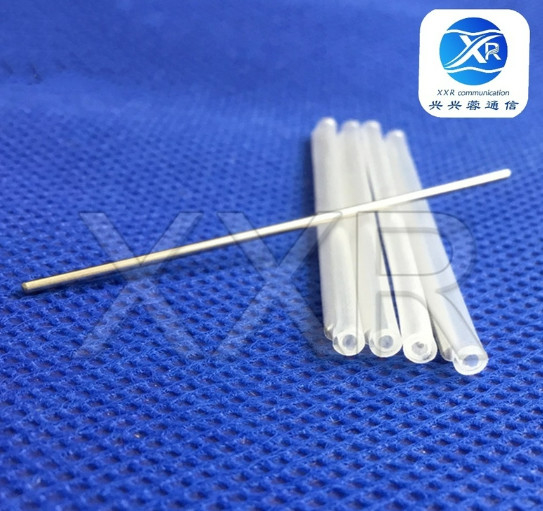

60mm Fiber Optic Splice Sleeve 0

Use: fiber splicing in FTTH and FTTx project

Suitable for: termination closures

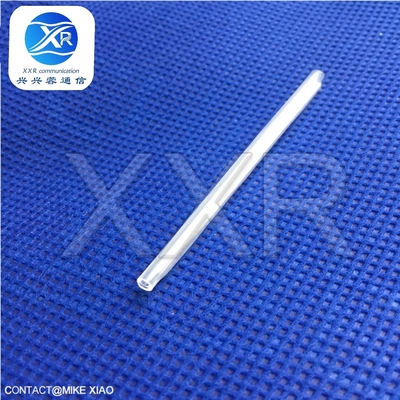

60mm Fiber Optic Splice Sleeve 1

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2
