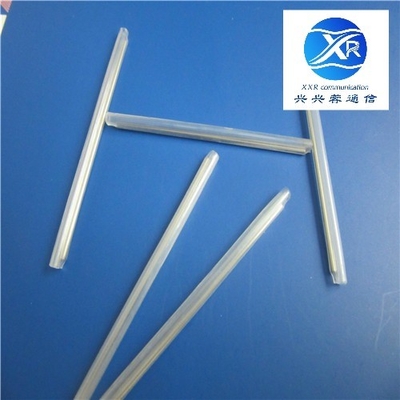

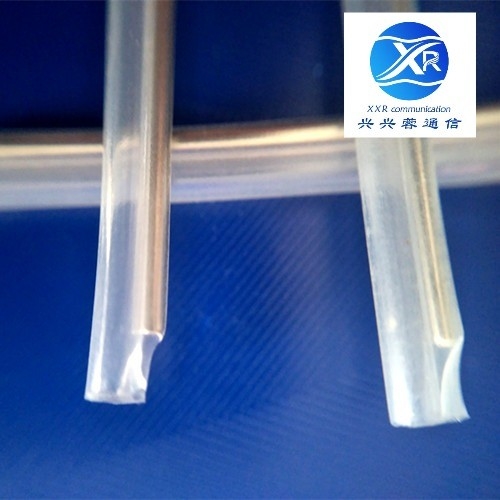

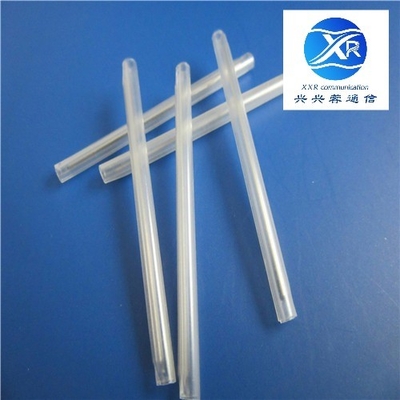

Fiber Optic Fusion Splice Protection Sleeve With Ends Preshrunk 25mm Long for Optical Instrument
the scope of application of small and micro fiber heat shrinkable tube:
It is mainly used in optical devices, optical instruments, special optical equipment and other fields that need optical fiber transmission data. It can reliably solve the problem of connection through hot melt.
Composition and characteristics of optical fiber heat shrinkable tube:
Composition :
(1) heat shrinkable tube (2) hot melt tube (3) stainless steel needle
Features :
(1) low shrinkage temperature, hot melt speed is very fast
(2) the steel needle makes the high mechanical strength after fusion greatly improved, to provide strength and protection for the fiber joint, sealing structure so that the connection has good temperature resistance and humidity performance
(3) the attenuation is almost zero, the signal is more stable, the transmission speed is faster
(4) simple operation, reduce the risk of damage to the optical fiber during installation
Application: optical communication field.
Suitable for: Optical instrument and equipement
Specifications:
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40M | 0.5 * 40 | 0.5 | 40 | 1.4 | 40 | ≥1.2 |
| OFSS-45M | 0.5 * 45 | 0.5 | 45 | 1.4 | 45 | ≥1.2 |
