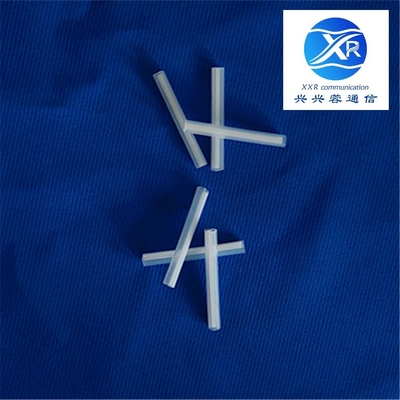

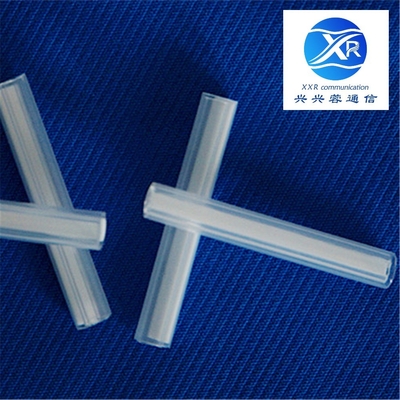

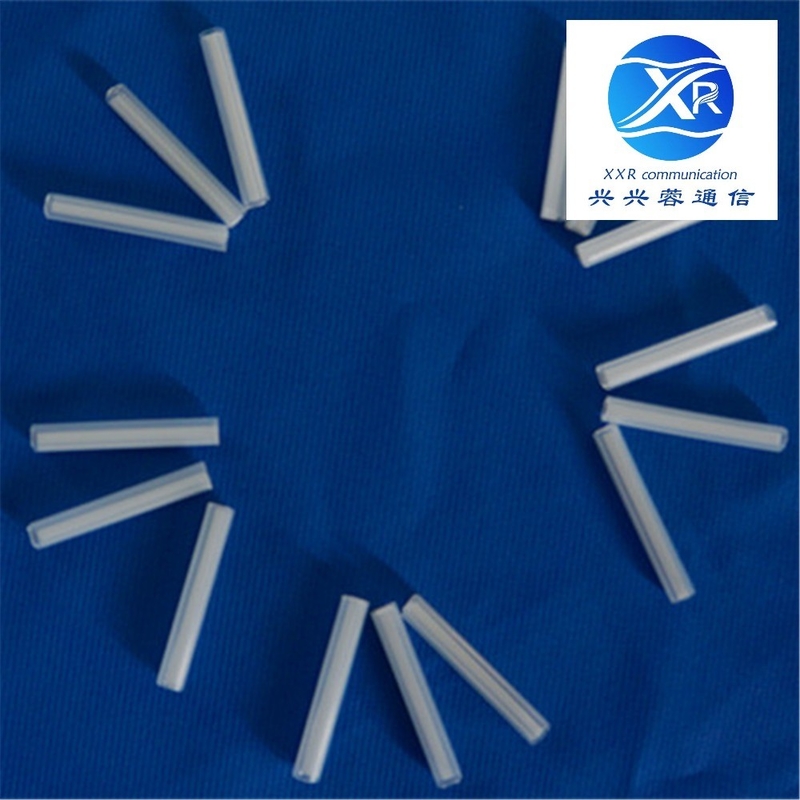

FTTH PROJECT DROP CABLE JOINT PROTECTION SLEEVE
|
Also called “FTTH Drop Splice Closure”, “FTTH Drop Repair Splice Closure ”, “FTTH Drop Repair joint kits”
This Fiber Drop Splice Closure is used in FTTH Connection. We use this Fiber Drop Repair Splice Closure to make heat Shrinkable Splice with 2pcs Drop Cable (Or Drop Cable SC Connector Terminated one side). Designed for either Flat Drop Cable or Round Drop Cable. this Fiber Drop Repair Splice Closure is installed indoor or Outdoor, provide good connection and protection in FTTH Constructions.
Optical cable protection is made of PE/EVA , with stainless steel rod diameter 1.0mm, Shrunk OD 3.5mm,3.6mm and 3.8mm. It's shape and design almost same as single fiber splice sleeve, just the outer diameter after shrinking and inner diameter are different.
The cable protection sleeve is usually installed in the protection box for protecting cable joint .
Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning, reliable.
Used for: FTTH optical cable joint protection box.
|
| Part No. | Spec. (mm) |
Seel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-60C | 60-2 | 1.0 | 60 | 3.6 | 60 | 3.5 |
| OFSS-55C | 55-2 | 1.0 | 55 | 3.6 | 55 | 3.5 |
| OFSS-50C | 50-2 | 1.0 | 50 | 3.6 | 50 | 3.5 |
| OFSS-45C | 45-2 | 1.0 | 45 | 3.6 | 45 |
3.5 |
| OFSS-60C | 60-1 | 1.0 | 60 | 3.5 | 60 | 3.8 |
| OFSS-55C | 55-1 | 1.0 | 55 | 3.5 | 55 | 3.8 |
| OFSS-50C | 50-1 | 1.0 | 50 | 3.5 | 50 | 3.8 |
| OFSS-45C | 45-1 | 1.0 | 45 | 3.5 | 45 | 3.8 |
