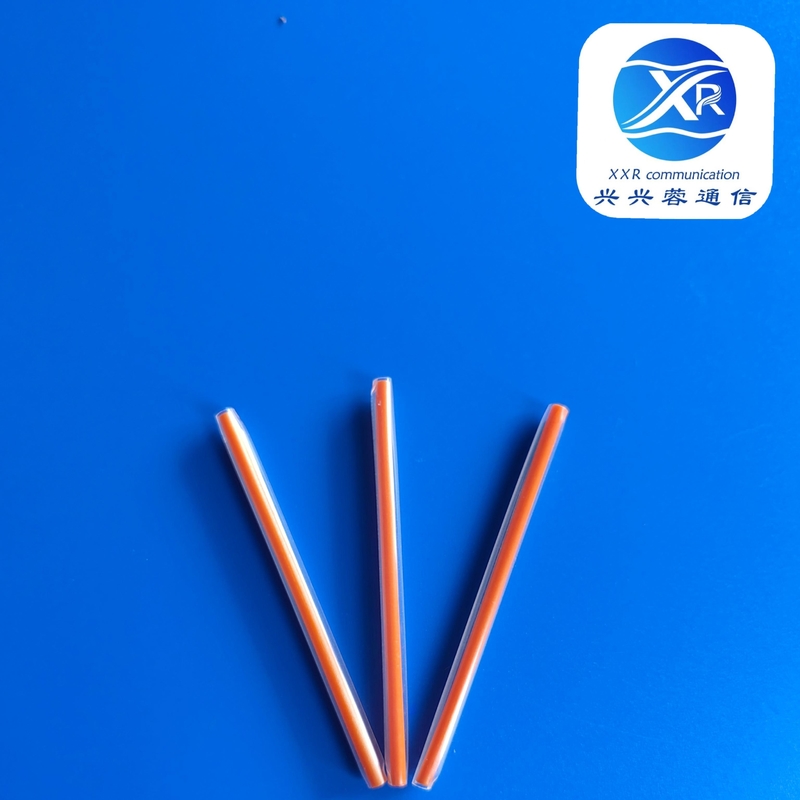

Orange Sleeve Protector Fiber Optic

Name: Orange Sleeve Protector Fiber Optic
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-60T
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-60T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Orange Heat Shrinkable Fiber Sleeve

Outer Tube:

Clear PE

Spec.:

1.0*60 MM

Rod Diameter:

1.0MM

Inner Tube:

Blue

OD After Shrinking:

2.7MM

Packing:

12 Pcs

Suitable For:

Fiber Distribution Box

Packaging Details:

12 pcs/pack

Supply Ability:

200K pcs/day

Highlight:

2.7mm Sleeve Protector Fiber Optic

1.0mm Sleeve Protector Fiber Optic

Orange optical fiber sleeve

Product Description

Orange Fiber Optic Heat Shrinkable Sleeve with OD=2.7mm

Fiber optic heat shrink Sleeve, the other name is called heat shrink tube, it is designed for the

enhancing protection of fiber splicing point, and supporing positioning.

It consists of heat shrink tube, hot fusion tube and steel rod. During the production, the fiber optic

heat shrink sleeve is preshrink at both ends for avoiding the movement of steel rod.

The fiber sleeve is usually 40mm, 45mm or 60mm, they are designed according to the splice tray

in the fiber closures.

The heat shrink sleeve is used in the FTTH & FTTx project.

XXR is a manufacturer, specialized in manufacturing all sorts of fiber heat shrink sleeves.

XXR is an ideal fiber sleeve supplier for all fiber closures manufacturer.

XXR fiber sleeves are widely used for termination box, splice tray and cross-connecting cabinet.

Specification:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

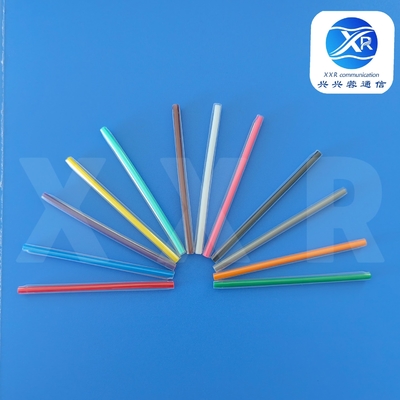

Orange Sleeve Protector Fiber Optic 0

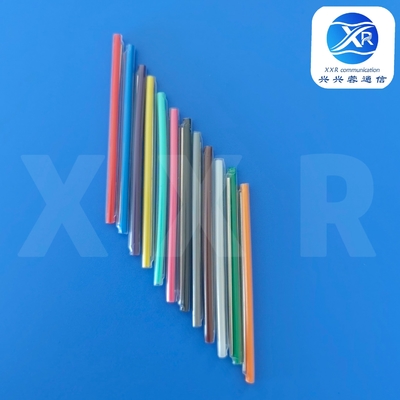

Orange Sleeve Protector Fiber Optic 1

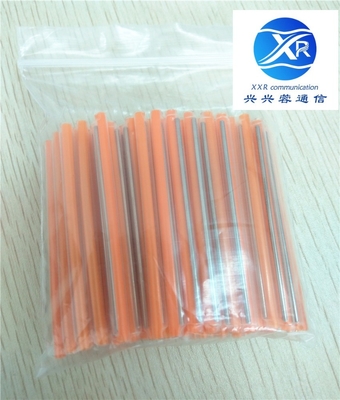

Orange Sleeve Protector Fiber Optic 2
