Brown Fiber Optic Protection Sleeve Hot Fusion For Splice Closures

Brand Name: XXR
Model Number: OFSS-60T
MOQ: 50,000 pcs
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS
Name:
60mm Brown Fiber Optic Sleeve
Outer Tube:
Clear
Spec.:
1.2*60 MM
Rod Diameter:
1.2MM
Inner Tube:
Green
OD After Shrinking:
2.7MM
Packing:
12 Pcs
Suitable For:
Splice Closure
Packaging Details:
12 pcs/pack
Supply Ability:
200K pcs/day
Highlight:

Brown Fiber Optic Protection Sleeve

,

2.7mm Fiber Optic Protection Sleeve

,

60mm splice protection sleeve

Product Description
60mm Brown Heat Shrink Tube FIber Optic Sleeve

Fiber optic heat shrink Sleeve, the other name is called heat shrink tube, it is designed for the enhancing protection of fiber splicing point, and supporing positioning.

It consists of heat shrink tube, hot fusion tube and steel rod. During the production, the fiber optic heat shrink sleeve is preshrink at both ends for avoiding the movement of steel rod.

The fiber sleeve is usually 40mm, 45mm or 60mm, they are designed according to the splice tray in the fiber closures.

Fiber Sleeves can be made according to customer's requirement, as outer tube is clear and inner tube is green,bulue,purple,orange, white, black and so on.

The heat shrink sleeve is used in the FTTH & FTTx project.

XXR is a manufacturer, specialized in manufacturing all sorts of fiber heat shrink sleeves.

XXR is an ideal fiber sleeve supplier for all fiber closures manufacturer.

XXR fiber sleeves are widely used for termination box, splice tray and cross-connecting cabinet.

Specification:

Part No. Spec. (mm)

Steel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

L.(mm)

ID

(mm)
OFSS-40T 1.5 * 40 1.5 40 3.0 40 ≥1.2
OFSS-45T 1.5 * 45 1.5 45 3.0 45 ≥1.2
OFSS-60T 1.5 * 60 1.5 60 3.0 60 ≥1.2
OFSS-40T 1.2 * 40 1.2 40 2.7 40 ≥1.2
OFSS-45T 1.2 * 45 1.2 45 2.7 45 ≥1.2
OFSS-60T 1.2 * 60 1.2 60 2.7 60 ≥1.2
OFSS-40T 1.0 * 40 1.0 40 2.5 40 ≥1.2
OFSS-45T 1.0 * 45 1.0 45 2.5 45 ≥1.2
OFSS-60T 1.0 * 60 1.0 60 2.5 60 ≥1.2

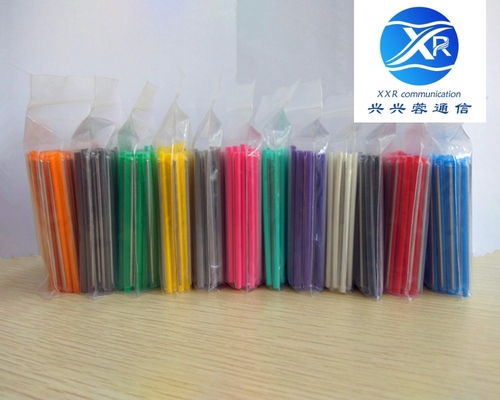

Brown Fiber Optic Protection Sleeve Hot Fusion For Splice Closures 0

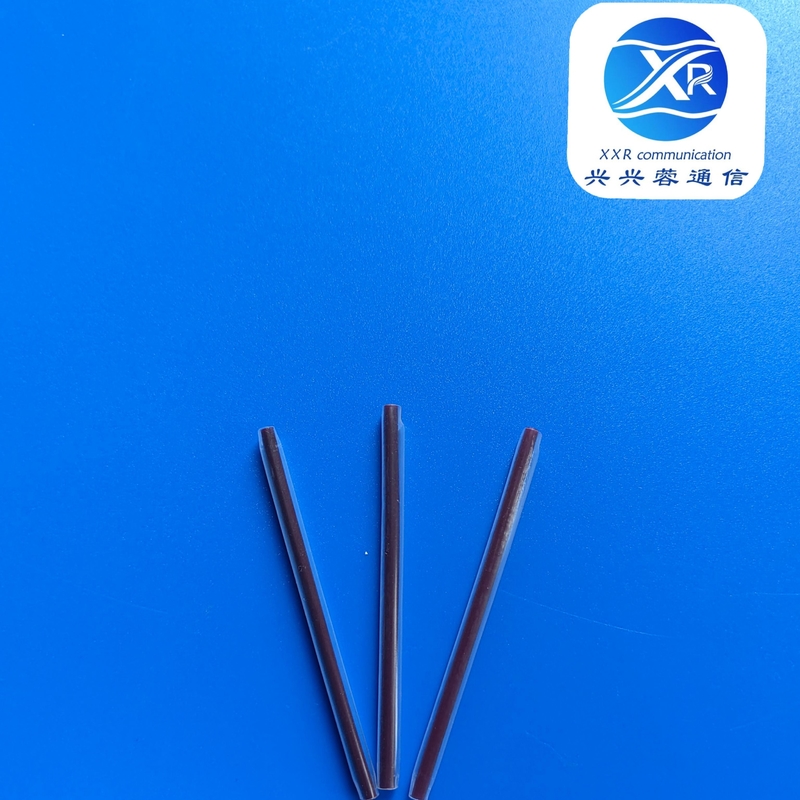

Brown Fiber Optic Protection Sleeve Hot Fusion For Splice Closures 1

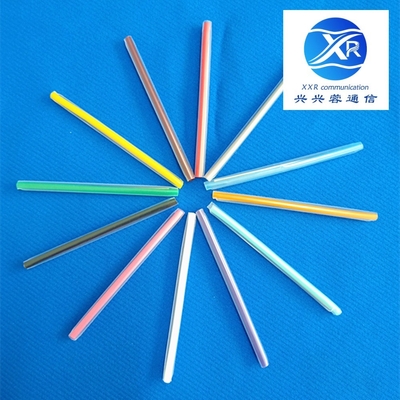

Brown Fiber Optic Protection Sleeve Hot Fusion For Splice Closures 2
