| Brand Name: | XXR |
| Model Number: | OFSS-40T |
| MOQ: | 50,000 pcs |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, L/C |

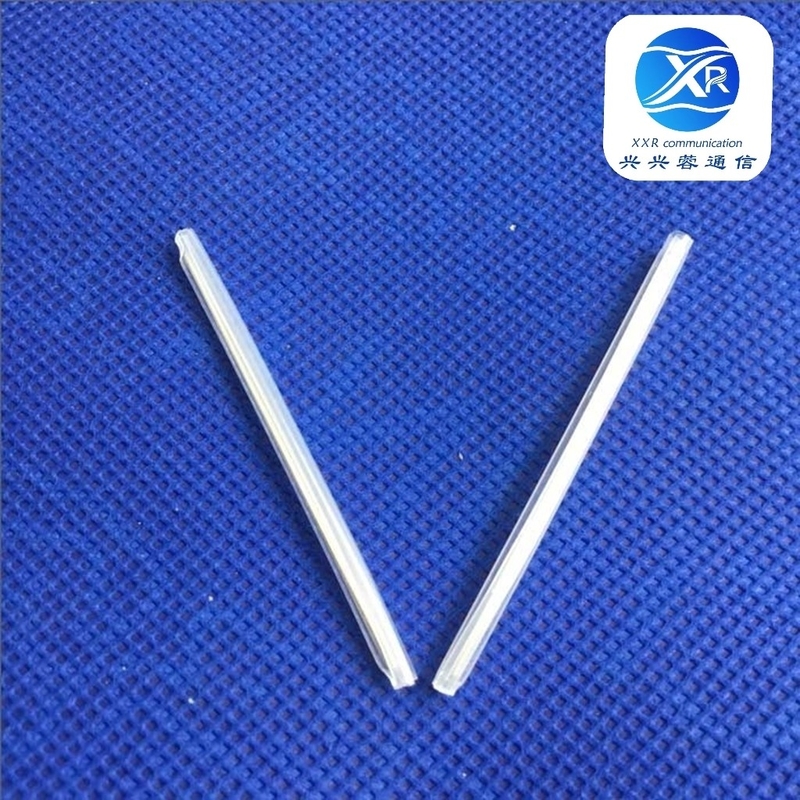

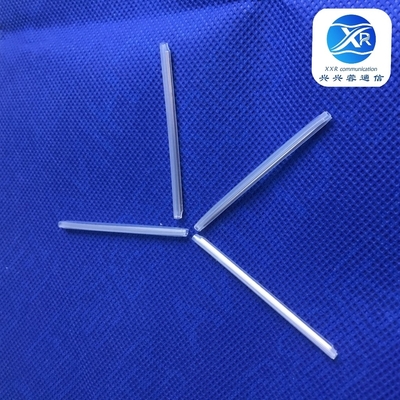

1.2x40mm FTTH & FTTx Optical Fiber Splice Sleeves for Fiber Optic Patch Panels
Heat Shrinkable Fiber Optic Fusion Splicing Protection Sleeve
For Fiber Optic Patch Panels/ODF I 40mm long I 304 Stainless
Steel I OD 3.1mm
XXR Communication Technology is specialized in manufacturing sorts of fiber splice sleeves for global fiber closure manufacturers.The company passed SGS and the products complied with RoHS and Reach.
The company has three advanced production lines, including steel rod production line, plastic tube production line and automatic-assembly production line.the capability of producing sleeves exceeds 200,000 pieces a day.
The splice sleeve's quality is strictly controled, all parts have to be seriously checked for outgoing. Since 2013, the company is famous for its high quality and gained much reputations.Numerious orders from all over the world come to XXR, who is aways insisting on high quality as its orientation of surrvival.
Use: fiber splicing in FTTH and FTTx project
Suitable for: fiber termination box
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40T | 1.5 * 40 | 1.5 | 40 | 3.0 | 40 | ≥1.2 |
| OFSS-45T | 1.5 * 45 | 1.5 | 45 | 3.0 | 45 | ≥1.2 |
| OFSS-60T | 1.5 * 60 | 1.5 | 60 | 3.0 | 60 | ≥1.2 |
| OFSS-40T | 1.2 * 40 | 1.2 | 40 | 2.7 | 40 | ≥1.2 |
| OFSS-45T | 1.2 * 45 | 1.2 | 45 | 2.7 | 45 | ≥1.2 |
| OFSS-60T | 1.2 * 60 | 1.2 | 60 | 2.7 | 60 | ≥1.2 |
| OFSS-40T | 1.0 * 40 | 1.0 | 40 | 2.5 | 40 | ≥1.2 |
| OFSS-45T | 1.0 * 45 | 1.0 | 45 | 2.5 | 45 | ≥1.2 |
| OFSS-60T | 1.0 * 60 | 1.0 | 60 | 2.5 | 60 | ≥1.2 |
Production capability: 180,000 pcs per day
Payment: T/T, Western Union, others
Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.
Lead time: 5-7 days
Application:
Video
Video
Video
Video
Video
Video
Video
Video
|
