60mm Clear Fiber Optic Splice Sleeve For Fiber Distribution Box

Name: 60mm Clear Fiber Optic Splice Sleeve For Fiber Distribution Box
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-60T
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-60T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Fiber Hot Fusion Sleeve

Brand:

XXR

Spec.:

1.0*60*304

Use:

FTTx & FTTH

Material:

Length:

60MM

Color:

Clear

OD After Shrink:

3.0mm

Used For:

Fiber Cross Cabinet

Packing:

100 Pcs

Packaging Details:

100 pcs

Supply Ability:

200K pcs/day

Highlight:

60mm Fiber Optic Splice Sleeve

1.5mm Fiber Optic Splice Sleeve

hot fusion Fiber Optic Cable Sleeve

Product Description

60mm Fiber Optic Splice Sleeve For Fiber Distribution Box

Heat Shrinkable Fiber Optic Fusion Splicing Protection Sleeve

For Fiber Optic Patch Panels/ODF/Fiber Distribution Box

Cross Connect Cabinet/Splice Tray/Splice Closures

I 60mm long I PE Tube I 304 Stainless Steel I OD 3.0mm

I Steel Rod Dia.1.5mm

Fiber Optic Splice Protection Sleeve, also called Fiber Optic Heat Shrink Tube.

It is designed for enhancing protection or supporting positioning of optical fiber

splicing.

Fiber Optic Splice Protection Sleeves are widely used in the filed of optical

communication as projects FTTH & FTTx.

As a global leading manufacturer of fiber optic splice protection sleeves,

XXR is devoted to manufacturing various of fiber sleeves for fiber optic

closures as patch panels/ODF, terminal box, fiber optic splice closures,

fiber distribution box, cross connect cabinet etc.

Production capability: 180,000 pcs per day

Payment: T/T, Western Union, others

Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.

Lead time: 5-7 days

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

Characteristics:

. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS

Technical Data:

Property	Criterion	Test Method	Value
Longitudinal change	-5%~5%	ASTM D2671	PASS
Tensile strength	≥10.4MPa	ASTM D2671	PASS
Elongation at break	≥200%	ASTM D2671	PASS
Volume resistivity	≥10¹⁴ Ω·cm	IEC 60093	PASS

Composition:

60mm Clear Fiber Optic Splice Sleeve For Fiber Distribution Box 0

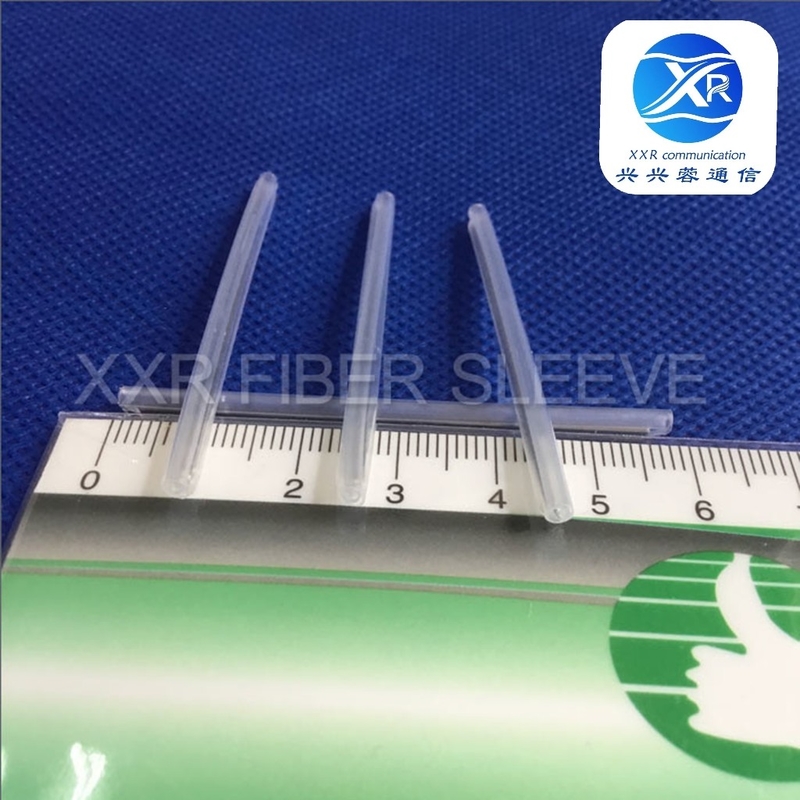

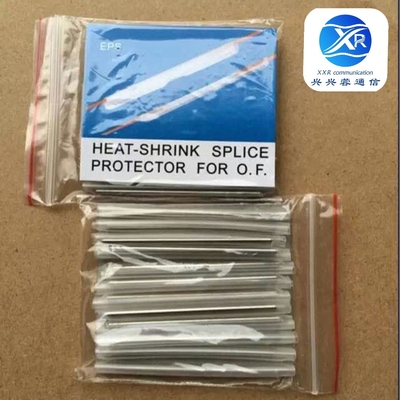

Physical Pic.:

Application:

XXR Communication Technology is specialized in manufacturing sorts of

fiber splice sleeves for global fiber closure manufacturers.The company

passed SGS and the products complied with RoHS and Reach.

The company has three advanced production lines, including steel rod

production line, plastic tube production line and automatic-assembly

production line.The capability of producing sleeves exceeds 200,000

pieces a day.

The splice sleeve's quality is strictly controled, all parts have to be

seriously checked for outgoing. Since 2013, the company is famous

for its high quality and gained much reputations.Numerious orders

from all over the world come to XXR, who is aways insisting on high

quality as its orientation of surrvival.
