| Brand Name: | XXR |
| Model Number: | OFSS-40T |
| MOQ: | 50,000 pcs |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, L/C |

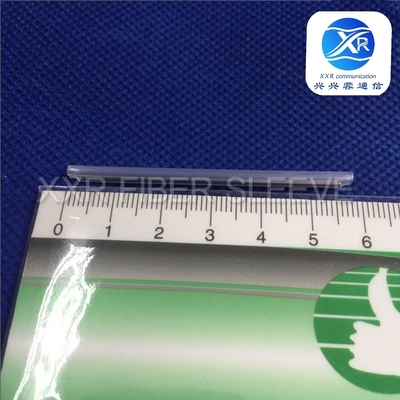

PE 60mm Splice Sleeves FTTx Fiber Cross Connect Cabinet
For Fiber Optic Patch Panels/ODF/Fiber Distribution Box
Cross Connect Cabinet/Splice Tray/Splice Closures
I 60mm long I EVA Tube I 201 Stainless Steel I OD 3.0mm
I Steel Rod Dia.1.5mm
Fiber Optic Splice Protection Sleeve consists of heat shrink tube, hot melt tube
and steel rod or ceramic rod. The hot shrink tube is usually made of PE or EVA,
and the melt tube is EVA. As for the steel rod, which is made of stainless steel
304 or 201.
Fiber Optic Splice Protection Sleeves are widely used in the filed of optical
communication as projects FTTH & FTTx.
As a global leading manufacturer of fiber optic splice protection sleeves,
XXR is devoted to manufacturing various of fiber sleeves for fiber optic
closures as patch panels/ODF, terminal box, fiber optic splice closures,
fiber distribution box, cross connect cabinet etc.
Production capability: 180,000 pcs per day
Payment: T/T, Western Union, others
Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.
Lead time: 5-7 days
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40T | 1.5 * 40 | 1.5 | 40 | 3.0 | 40 | ≥1.2 |
| OFSS-45T | 1.5 * 45 | 1.5 | 45 | 3.0 | 45 | ≥1.2 |
| OFSS-60T | 1.5 * 60 | 1.5 | 60 | 3.0 | 60 | ≥1.2 |
| OFSS-40T | 1.2 * 40 | 1.2 | 40 | 2.7 | 40 | ≥1.2 |
| OFSS-45T | 1.2 * 45 | 1.2 | 45 | 2.7 | 45 | ≥1.2 |
| OFSS-60T | 1.2 * 60 | 1.2 | 60 | 2.7 | 60 | ≥1.2 |
Characteristics:
. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS
Technical Data:
| Property | Criterion | Test Method | Value | ||
| Longitudinal change | -5%~5% | ASTM D2671 | PASS | ||
| Tensile strength | ≥10.4MPa | ASTM D2671 | PASS | ||
| Elongation at break | ≥200% | ASTM D2671 | PASS | ||
| Volume resistivity | ≥1014 Ω·cm | IEC 60093 | PASS | ||
Composition:

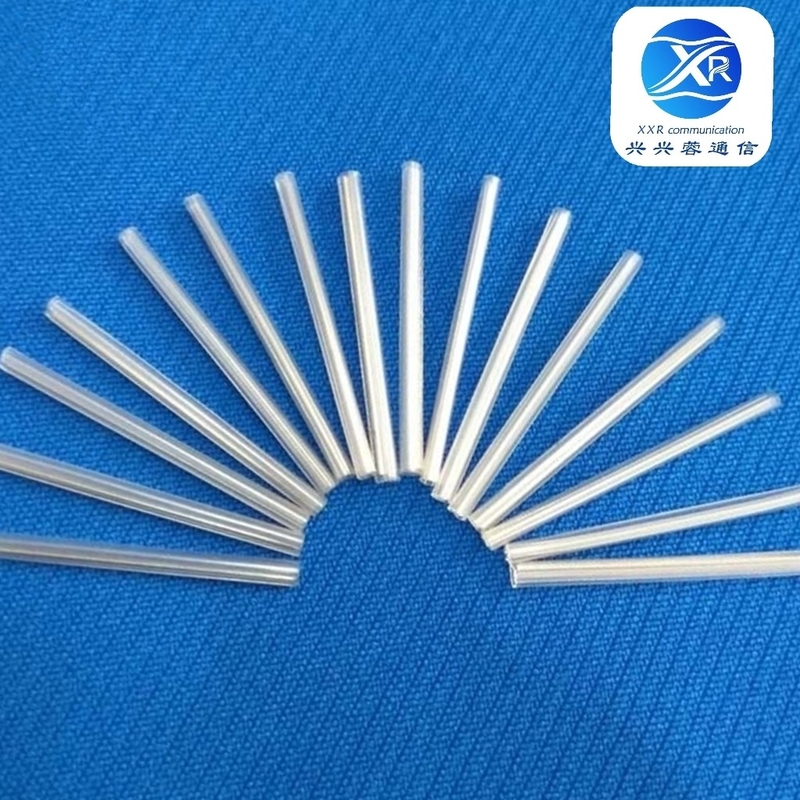

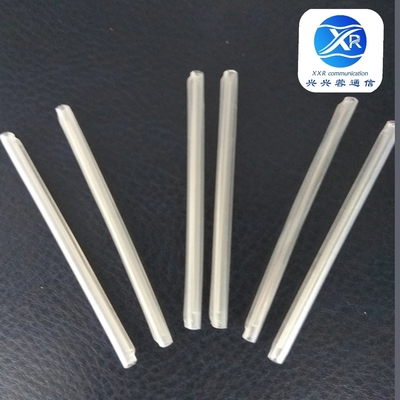

Physical Pic.:
Application:
XXR Communication Technology is specialized in manufacturing sorts of
fiber splice sleeves for global fiber closure manufacturers.The company
passed SGS and the products complied with RoHS and Reach.
The company has three advanced production lines, including steel rod
production line, plastic tube production line and automatic-assembly
production line.The capability of producing sleeves exceeds 200,000
pieces a day.
