| Brand Name: | XXR |
| Model Number: | OFSS-40T |
| MOQ: | 50,000 pcs |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, L/C |

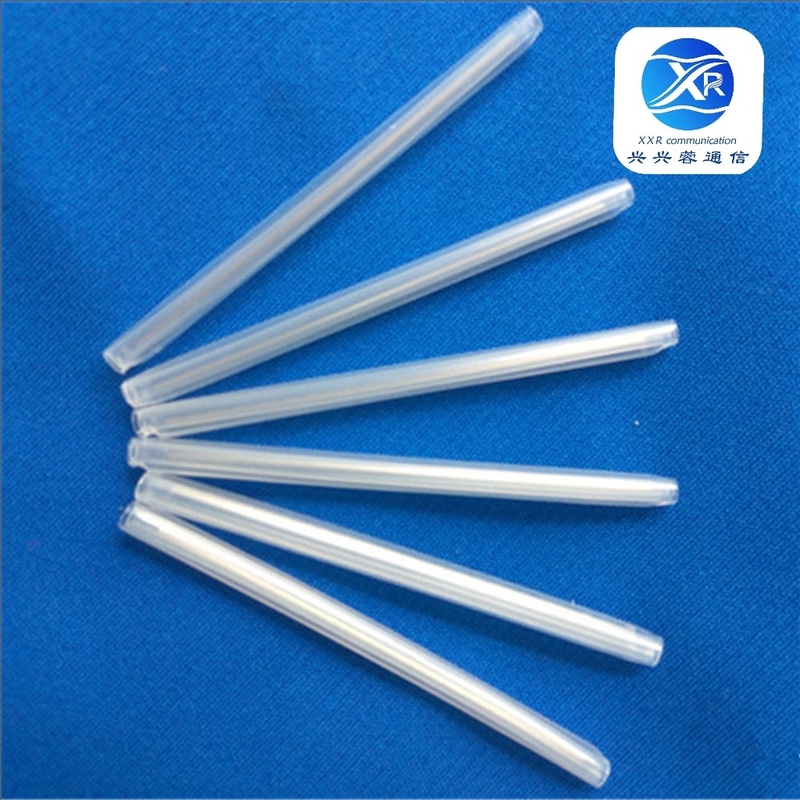

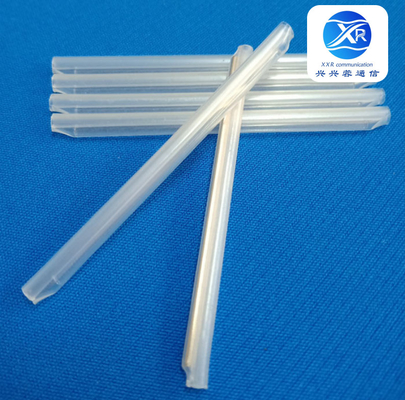

304 Steel Hot Fusion Fiber Splice Tube With 2 Ends Preshrunk For Splice Tray
Heat Shrinkable Protection Sleeve For Fiber Optic Patch Panels/ODF/Fiber Distribution Box Cross Connect Cabinet/Splice Tray/Splice Closures
I 40mm long I EVA Tube I 304 Stainless Steel I OD 2.5mm I Steel Rod Dia.1.0mm
Fiber Optic Splice Protection Sleeve, also called Fiber Optic Heat Shrink Tube. It is designed for enhancing protection or supporting positioning of optical fiber splicing.
As a global leading manufacturer of fiber optic splice protection sleeves, XXR is devoted to manufacturing various of fiber sleeves for fiber optic
closures as patch panels/ODF, terminal box, fiber optic splice closures, fiber distribution box, cross connect cabinet etc.
| Production capability: 180,000 pcs/day | Payment: T/T, Western Union, others |
| Delivery: By air via DHL, FedEx, UPS, TNT, EMS etc or by Sea | Lead time: 5-7 days |
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm ) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40T | 1.5 * 40 | 1.5 | 40 | 3.0 | 40 | ≥1.2 |
| OFSS-45T | 1.5 * 45 | 1.5 | 45 | 3.0 | 45 | ≥1.2 |
| OFSS-60T | 1.5 * 60 | 1.5 | 60 | 3.0 | 60 | ≥1.2 |
| OFSS-40T | 1.2 * 40 | 1.2 | 40 | 2.7 | 40 | ≥1.2 |
| OFSS-45T | 1.2 * 45 | 1.2 | 45 | 2.7 | 45 | ≥1.2 |
| OFSS-60T | 1.2 * 60 | 1.2 | 60 | 2.7 | 60 | ≥1.2 |
Characteristics:
. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS
Technical Data:
| Property | Criterion | Test Method | Value | ||
| Longitudinal change | -5%~5% | ASTM D2671 | PASS | ||
| Tensile strength | ≥10.4MPa | ASTM D2671 | PASS | ||
| Elongation at break | ≥200% | ASTM D2671 | PASS | ||
| Volume resistivity | ≥1014 Ω·cm | IEC 60093 | PASS | ||
Composition:

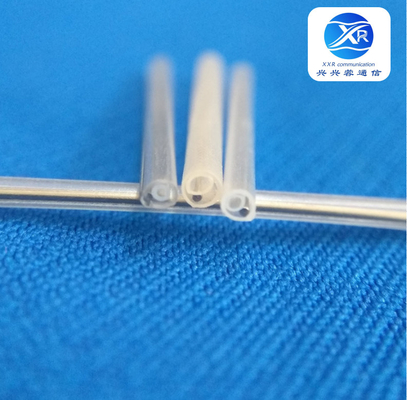

Physical Pic.:
Application:
The splice sleeve's quality is strictly controled, all parts have to be seriously checked for outgoing. Since 2013, the company is famous
for its high quality and gained much reputations.Numerious orders from all over the world come to XXR, who is aways insisting on high
quality as its orientation of surrvival.
