1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

Name

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

Brand Name:	XXR
Model Number:	OFSS-40T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Fiber Hot Fusion Sleeve

Brand:

XXR

Spec.:

1.5*40*304

Use:

FTTx & FTTH

Material:

PE

Length:

40MM

Color:

Clear

OD After Shrink:

3.0mm

Used For:

Fiber Splice Closure

Packing:

100 Pcs

Packaging Details:

100 pcs

Supply Ability:

200K pcs/day

Highlight:

1.57in Heat Shrink Splice Protector

,

RoHS Heat Shrink Splice Protector

,

1.5mm Sleeve Protector Fiber Optic

Product Description

Heat Shrinkable Fiber Optic Fusion Splicing Protection Sleeve

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

For Fiber Optic Patch Panels/ODF/Fiber Distribution Box

Cross Connect Cabinet/Splice Tray/Splice Closures

/40mm long / PE Tube/304 Stainless Steel /OD 3.0mm

Steel Rod Dia.1.5mm

Description:

Fiber Optic Splice Protection Sleeve, also called Fiber Optic Heat Shrink Tube. It is designed for enhancing protection or supporting positioning of optical fiber splicing.
Fiber Optic Splice Protection Sleeves are widely used in the filed of optical communication as projects FTTH & FTTx.
As a global leading manufacturer of fiber optic splice protection sleeves, XXR is devoted to manufacturing various of fiber sleeves for fiber optic closures as patch panels/ODF, terminal box, fiber optic splice closures, fiber distribution box, cross connect cabinet etc.
This product is made up of cross-linked polyolefin heat-shrinkable tubes, holt-melt tubes and stainless steel needle. It is specifically designed for the protection of fiber optical closure.
Protect connection point, improve the mechinal strength, it is most reliable way to protect the fusion.
Easy to operate, reducing the risk of fiber damage during installation.
Transparant tube, it is easy to see the status of fiber optical closure.
Sealing structure let closure have good resistance to temperature and humidity performance.

Production capability: 180,000 pcs/day	Payment: T/T, Western Union, others
Delivery: By Air via DHL, FedEx, UPS, TNT, EMS etc or By Sea	Delivery time: 5-7 days

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

Characteristics:

. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS

Technical Data:

Property	Criterion	Test Method		Value
Longitudinal change	-5%~5%	ASTM D2671		PASS
Tensile strength	≥10.4MPa	ASTM D2671		PASS
Elongation at break	≥200%	ASTM D2671		PASS
Volume resistivity	≥10¹⁴ Ω·cm	IEC 60093		PASS

Composition:

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 0

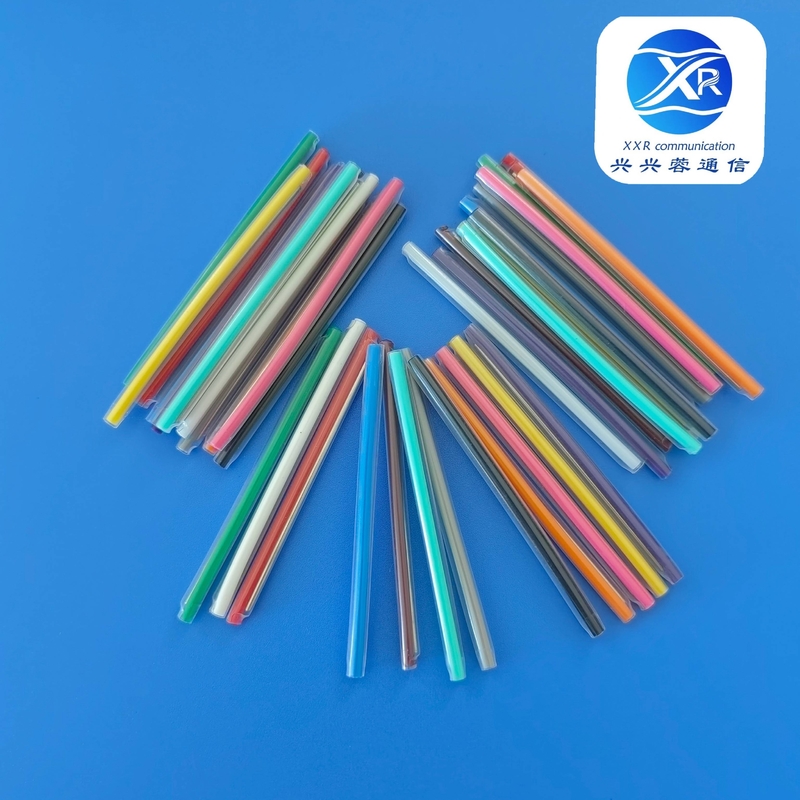

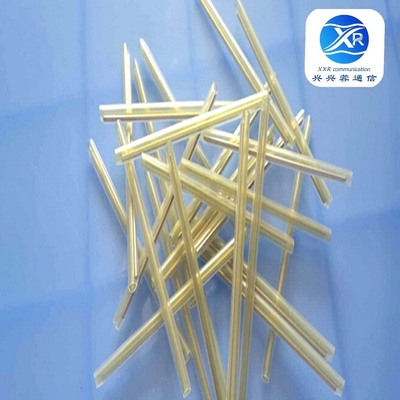

Physical Pic.:

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 1

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 2

Application:

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 3

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 4

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 5

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 6

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 7

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 8

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 9
