| Brand Name: | XXR |
| Model Number: | OFSS-40T |
| MOQ: | 50,000 pcs |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, L/C |

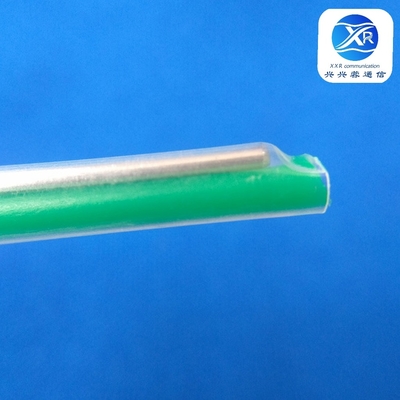

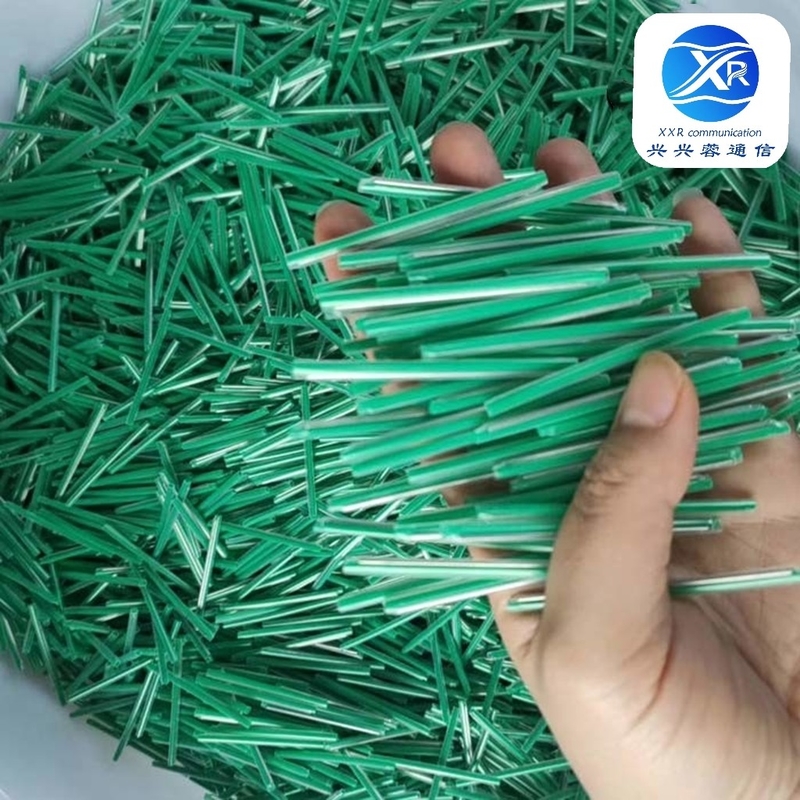

Green FTTH Fiber Splice Protection Sleeves , 1.0 mm Fusion Splice Protection Sleeve
For Fiber Optic Patch Panels/ODF/Fiber Distribution Box
Cross Connect Cabinet/Splice Tray/Splice Closures
40mm long I PE Tube I 304 Stainless Steel I OD 2.5mm
Steel Rod Dia.1.0mm
Fiber Optic Splice Protection Sleeves are widely used in the filed of optical communication as projects FTTH & FTTx.
Production capability: 180,000 pcs per day
Payment: T/T, Western Union, others
Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.
Lead time: 5-7 days
XXR Communication Technology is specialized in manufacturing sorts of fiber splice sleeves for global fiber closure manufacturers.The company
passed SGS and the products complied with RoHS and Reach.
The company has three advanced production lines, including steel rod production line, plastic tube production line and automatic-assembly
production line.The capability of producing sleeves exceeds 200,000 pieces a day.
The splice sleeve's quality is strictly controled, all parts have to be seriously checked for outgoing. Since 2013, the company is famous
for its high quality and gained much reputations.Numerious orders from all over the world come to XXR, who is aways insisting on high
quality as its orientation of surrvival.
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40T | 1.5 * 40 | 1.5 | 40 | 3.0 | 40 | ≥1.2 |
| OFSS-40T | 1.2 * 40 | 1.2 | 40 | 2.7 | 40 | ≥1.2 |
| OFSS-40T | 1.0 * 40 | 1.0 | 40 | 2.5 | 40 | ≥1.2 |
Characteristics:
. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS
Technical Data:
| Property | Criterion | Test Method | Value | ||
| Longitudinal change | -5%~5% | ASTM D2671 | PASS | ||
| Tensile strength | ≥10.4MPa | ASTM D2671 | PASS | ||
| Elongation at break | ≥200% | ASTM D2671 | PASS | ||
| Volume resistivity | ≥1014 Ω·cm | IEC 60093 | PASS | ||
Composition:
Our Certification
Application:
Video
Video
Video
Video
Video
Video
Video
Video
|
