| Brand Name: | XXR |
| Model Number: | OFSS-45T |
| MOQ: | 50,000 pcs |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, L/C |

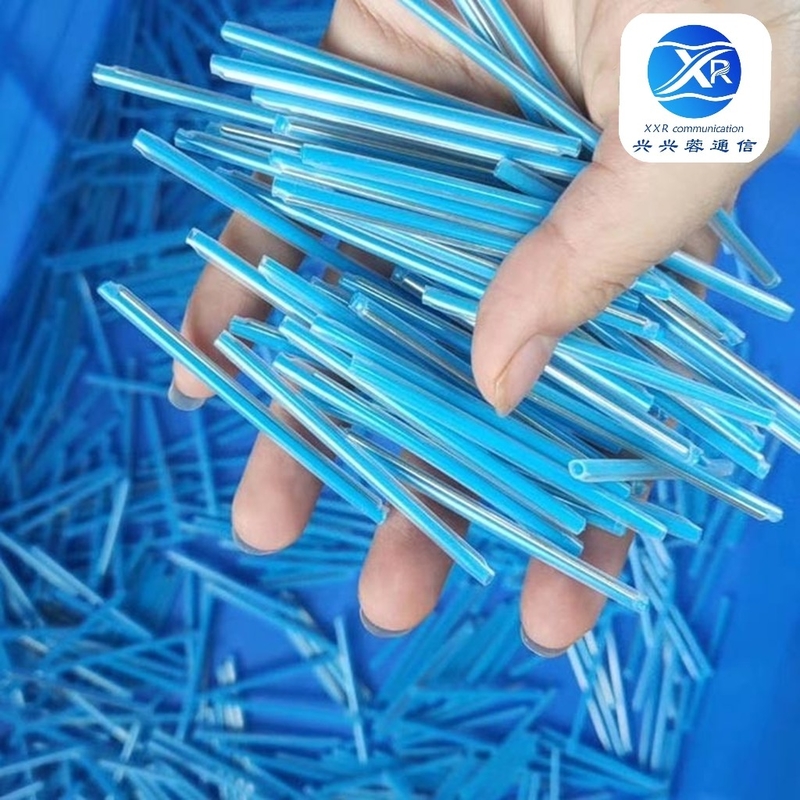

2.7mm Blue Fiber Optic Splice Sleeves , RoHS Compliant Fiber Optic Cable Sleeve
Fiber Optic Fusion Splice Protection Sleeve
For Fiber Optic Patch Panels/ODF/Fiber Distribution Box
Cross Connect Cabinet/Splice Tray/Splice Closures
/ 45mm long / EVA Tube/304 Stainless Steel /OD 2.7mm
/ Steel Rod Dia.1.2mm
Description:

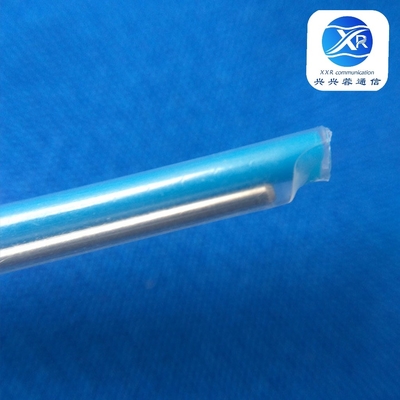

Fiber Optic Splice Protection Sleeve consists of heat shrink tube, hot melt tube and steel rod or ceramic rod. The hot shrink tube is usually made of PE or EVA, and the melt tube is EVA. As for the steel rod,
which is made of stainless steel 304 or 201.
Fiber Optic Splice Protection Sleeves are widely used in the filed of optical communication as projects FTTH & FTTx.
As a global leading manufacturer of fiber optic splice protection sleeves, XXR is devoted to manufacturing various of fiber sleeves for fiber optic closures as patch panels/ODF, terminal box, fiber optic splice
closures, fiber distribution box, cross connect cabinet etc.
Production capability: 180,000 pcs per day
Payment: T/T, Western Union, others
Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.
Lead time: 5-7 days
XXR Communication Technology is specialized in manufacturing sorts of fiber splice sleeves for global fiber closure manufacturers.The company passed SGS and the products complied with RoHS and Reach.
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40T | 1.5 * 40 | 1.5 | 40 | 3.0 | 40 | ≥1.2 |
| OFSS-45T | 1.5 * 45 | 1.5 | 45 | 3.0 | 45 | ≥1.2 |
| OFSS-40T | 1.2 * 40 | 1.2 | 40 | 2.7 | 40 | ≥1.2 |
| OFSS-45T | 1.2 * 45 | 1.2 | 45 | 2.7 | 45 | ≥1.2 |
| OFSS-40T | 1.0 * 40 | 1.0 | 40 | 2.5 | 40 | ≥1.2 |
| OFSS-45T | 1.0 * 45 | 1.0 | 45 | 2.5 | 45 | ≥1.2 |
Characteristics:
Technical Data:
| Property | Criterion | Test Method | Value | ||
| Longitudinal change | -5%~5% | ASTM D2671 | PASS | ||
| Tensile strength | ≥10.4MPa | ASTM D2671 | PASS | ||
| Elongation at break | ≥200% | ASTM D2671 | PASS | ||
| Volume resistivity | ≥1014 Ω·cm | IEC 60093 | PASS | ||
Company Profile
Founded in 2013, XXR is a global leading manufacturer of fiber optic splice protection sleeves, we are committed to research and development, production and sales of various of fiber optic splice
protection sleeves for optical fiber termination equipment suchas ODF/patch panels, cable splice colsures,termination box,coss connecting cabinet etc. The products are sold at home and abroad
and have been well received by our customers.
We have a set of advanced equipment for producing fiber optic protection sleeves, all parts as steel rod,outer tube and inter tube are manufactured by ourselves, which enable us to control the
quality competely,and therefore provide the customers with high quality products.
