| Brand Name: | XXR |
| Model Number: | OFSS-45T |
| MOQ: | 50,000 pcs |
| Price: | Negotiable |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, L/C |

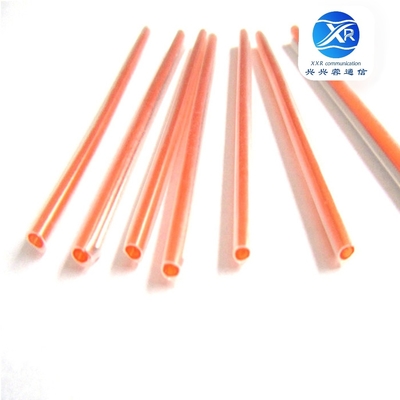

Red Fiber Optic Splice Sleeve , 2.5mm Fiber Heat Shrink Sleeves
Heat Shrinkable Protection Sleeve For Fiber Optic Patch Panels/ODF/Fiber Distribution Box Cross Connect Cabinet/Splice Tray/Splice Closures / 60mm long / EVA Tube / 304 Stainless Steel / OD 2.5mm / Steel Rod Dia.1.2mm
Description:
Fiber Optic Splice Protection Sleeve, also called Fiber Optic Heat Shrink Tube. It is designed for enhancing protection or supporting positioning of optical fiber splicing.
Fiber Optic Splice Protection Sleeve consists of heat shrink tube, hot melt tube and steel rod or ceramic rod. The hot shrink tube is usually made of PE or EVA, and the melt tube is EVA. As for the steel rod, which is made of stainless steel 304 or 201.
Fiber Optic Splice Protection Sleeves are widely used in the filed of optical communication as projects FTTH & FTTx.
| Production capability: 180,000 pcs/day | Payment: T/T, Western Union, Others |
| Delivery: By Air via DHL, FedEx, EMS, etc. | Lead time: 5-7 days |
| Part No. | Spec. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube L.(mm) |
ID (mm) |
| OFSS-40T | 1.2 * 40 | 1.2 | 40 | 2.7 | 40 | ≥1.2 |
| OFSS-45T | 1.2 * 45 | 1.2 | 45 | 2.7 | 45 | ≥1.2 |
| OFSS-60T | 1.2 * 60 | 1.2 | 60 | 2.7 | 60 | ≥1.2 |
| OFSS-40T | 1.0 * 40 | 1.0 | 40 | 2.5 | 40 | ≥1.2 |
| OFSS-45T | 1.0 * 45 | 1.0 | 45 | 2.5 | 45 | ≥1.2 |
| OFSS-60T | 1.0 * 60 | 1.0 | 60 | 2.5 | 60 | ≥1.2 |
Characteristics:
Technical Data:
| Property | Criterion | Test Method | Value | ||
| Longitudinal change | -5%~5% | ASTM D2671 | PASS | ||
| Tensile strength | ≥10.4MPa | ASTM D2671 | PASS | ||
| Elongation at break | ≥200% | ASTM D2671 | PASS | ||
| Volume resistivity | ≥1014 Ω·cm | IEC 60093 | PASS | ||
Structure:

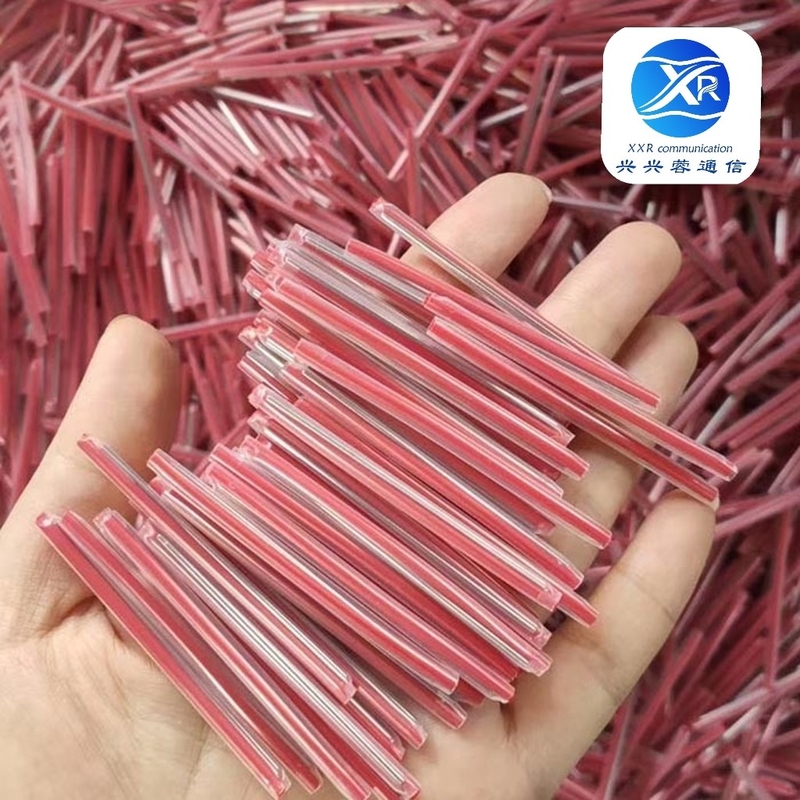

Physical Pic.:
Application:
Video
Video
Video
Video
Video
Video
Video
Video
|
