45mm Fiber Optic Heat Shrink Sleeve For Distribution Box

Name: 45mm Fiber Optic Heat Shrink Sleeve For Distribution Box
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-45T
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-45T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Fiber Sleeves

Brand:

XXR

Spec.:

1.5*45*304

Use:

FTTx & FTTH

Material:

Length:

45MM

Color:

Clear

OD After Shrink:

3.0mm

Used For:

Fiber Splice Closure

Packing:

100 Pcs

Packaging Details:

100 pcs

Supply Ability:

200K pcs/day

Highlight:

45mm Fiber Optic Heat Shrink Sleeve

ss304 Fiber Optic Heat Shrink Sleeve

FTTx splice protection sleeve

Product Description

45mm Fiber Optic Heat Shrink Sleeve For Fiber Distribution Box

Heat Shrinkable Protection Sleeve

For Fiber Optic Patch Panels/ODF/Fiber Distribution Box

Cross Connect Cabinet/Splice Tray/Splice Closures

/45mm long / PE Tube / 304 Stainless Steel / OD 3.0mm

Steel Rod Dia.1.5mm

Description:

Fiber Optic Splice Protection Sleeve consists of heat shrink tube, hot melt tube

and steel rod or ceramic rod. The hot shrink tube is usually made of PE or EVA,

and the melt tube is EVA. As for the steel rod, which is made of stainless steel

304 or 201.

Fiber Optic Splice Protection Sleeves are widely used in the filed of optical

communication as projects FTTH & FTTx.

As a global leading manufacturer of fiber optic splice protection sleeves,

XXR is devoted to manufacturing various of fiber sleeves for fiber optic

closures as patch panels/ODF, terminal box, fiber optic splice closures,

fiber distribution box, cross connect cabinet etc.

Production capability: 180,000 pcs per day

Payment: T/T, Western Union, others

Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.

Lead time: 5-7 days

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

Characteristics:

. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS

Technical Data:

Property	Criterion	Test Method	Value
Longitudinal change	-5%~5%	ASTM D2671	PASS
Tensile strength	≥10.4MPa	ASTM D2671	PASS
Elongation at break	≥200%	ASTM D2671	PASS
Volume resistivity	≥10¹⁴ Ω·cm	IEC 60093	PASS

Composition:

45mm Fiber Optic Heat Shrink Sleeve For Distribution Box 0

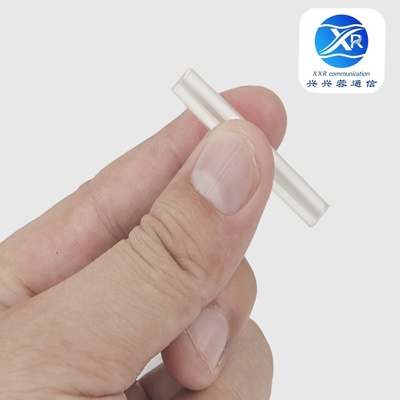

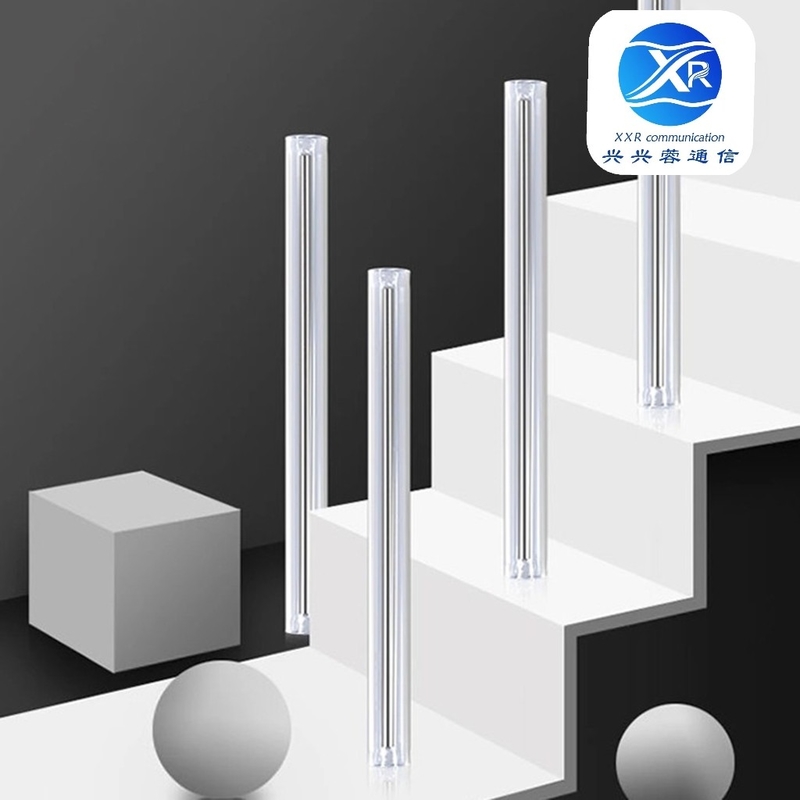

Physical Pic.:

Application:

Tags:
