60MM OD2.5MM Fiber Optic Equipment Optical Closures Accessories Heat Shrinkable Fiber Protection Sleeve

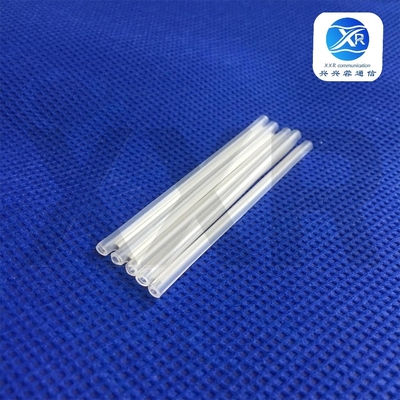

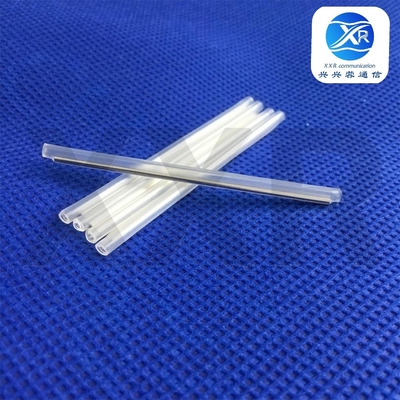

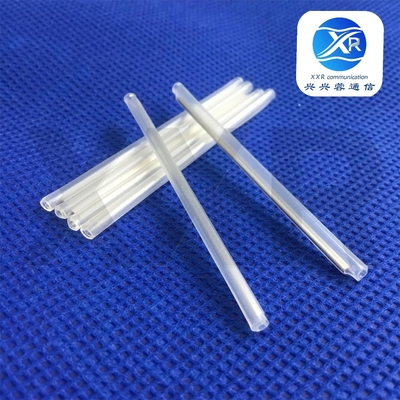

Fiber protection sleeve is a sort of heat shrinkable tube with minimum recovery celsius temperature 120 degrees and operating temperature range from -45 degree to 100 degrees, it consists of heat shrink tube ( outer tube ), fusion tube (inner tube) and 304 grade stainless steel strength member.

The fiber protection sleeve is specially designed for single fiber splicing and protection, and installed in the optical closures such as fiber optic splice closure, street cabinet, cross connection cabinet, termination box, splice tray etc.

High quality fiber splice sleeve, designed for single fiber 250um or 900um

Features

. Protect the joint point of optical fiber

. Keep the transmisstion performance of optical fiber

. Keep the splice pioint with good resistance of humidity and teperature

. Easy to install and avoid damage to the optical fiber

. Premium 304 grade stainless steel used to make strength member

. Strength member with ends polished & chamfered

. The fiber optic protector sleeve with ends fully sealed, keeping strength member fixed.

Pay attention to details

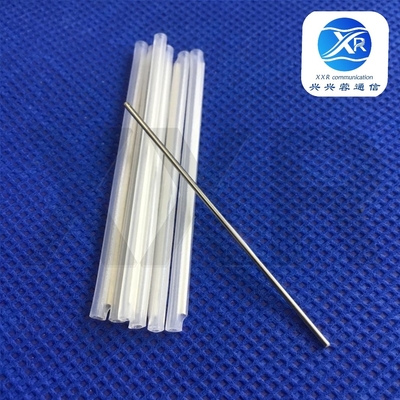

. 304 grade stainless steel as strenght member

. Fully sealed ends keep strength member fixed.

Top quality: difference of ends

Product Specification

1. Outer diameter after recovery: OD2.5 mm + / - 0.1mm
2. Inner diameter before recovery: OD1.8+ / - 0.1mm
3. Steel rod diameter: OD 1.0 mm+ / - 0.1mm
4. Minimum installation temperature: 110 degree
5. Max installation time: 60 seconds
6. Standard color: Clear
7. RoHS compliant
8. Packing: 100 pcs per bag (Others for special order)

Application

The fiber optic splice protection sleeve is widely used in the optical communication field,

for the euipment such as fiber optic splice closures, fiber distribution box, splice tray,

termination box, cross connection cabinet etc.

Applied to ODF

Applied to Fiber Distribution Box
