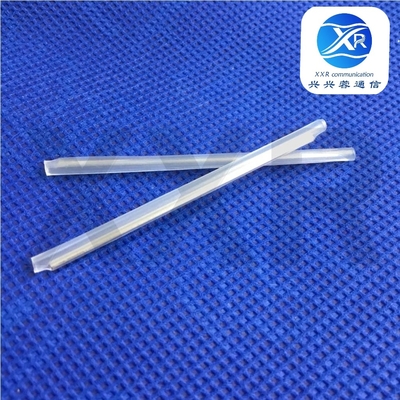

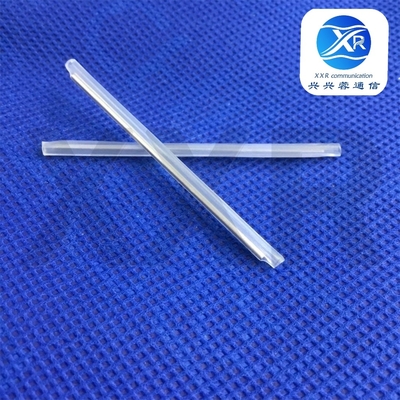

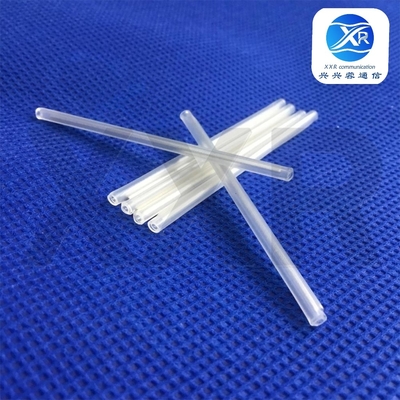

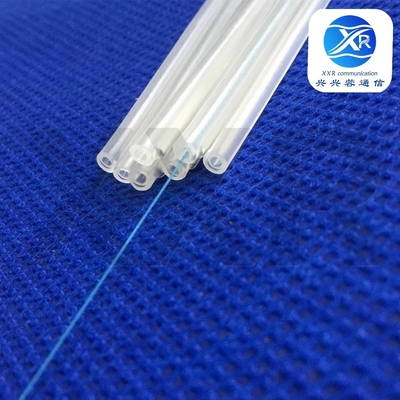

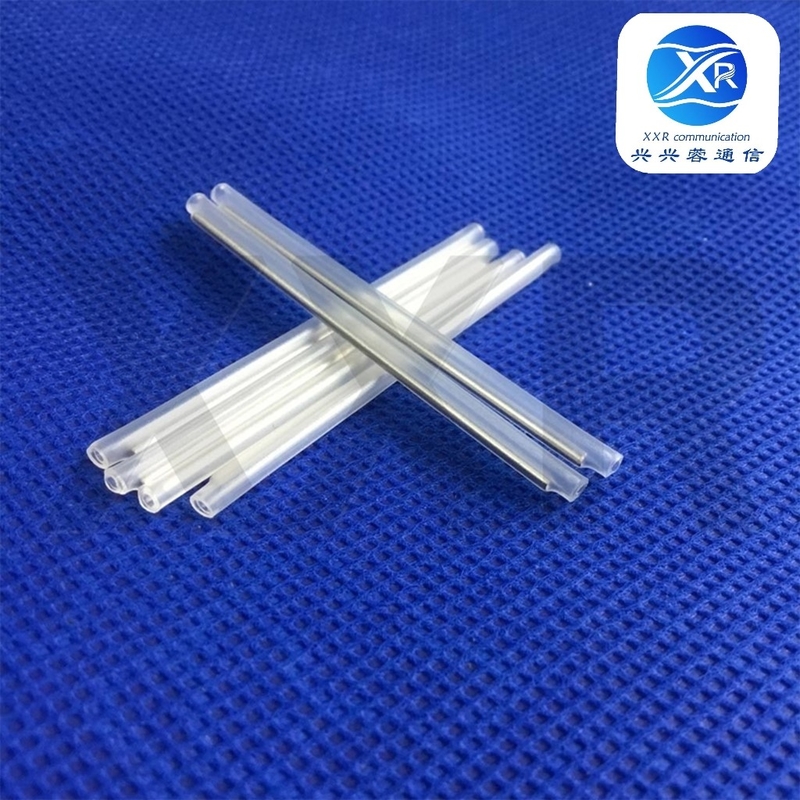

OD2.7MM 60MM Fiber Optic Equipment Splice Closure Accessories Fully Sealed Heat Shrinkable Tube

Heat shrinkable tube here indicates optical fiber heat shrink sleeve with minimum recovery celsius temperature 120 degrees and operating temperature range from -45 degree to 100 degrees, it consists of heat shrink tube ( outer tube ), fusion tube (inner tube) and 304 grade stainless steel strength member.

The heat shrinkable sleeve is specially designed for single fiber splicing and protection, and installed in the optical closures such as fiber optic splice closure, street cabinet, cross connection cabinet, termination box, splice tray etc.

High quality heat shrink sleeves

cable fiber splice sleeve, designed for single fiber 250um or 900um

Features

. Protect the joint point of optical fiber

. Keep the transmisstion performance of optical fiber

. Keep the splice pioint with good resistance of humidity and teperature

. Easy to install and avoid damage to the optical fiber

. Premium 304 grade stainless steel used to make strength member

. Strength member with ends polished & chamfered

. The fiber optic protector sleeve with ends fully sealed, keeping strength member fixed.

Pay attention to details

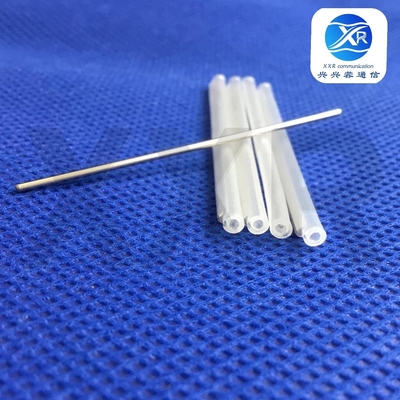

. 304 grade stainless steel as strenght member

. Strength member with ends polished and chamfered

. Fully sealed ends keep strength member fixed.

Product comparison

. Top quality sleeve with fully sealed ends

. Normal type sleeve with half-sealed ends

. The difference between the products is whether there is a gap between

the internal and external tubes

Product Specification

1. Outer diameter after recovery: OD2.7 mm + / - 0.1mm
2. Inner diameter before recovery: OD1.7+ / - 0.1mm
3. Steel rod diameter: OD 1.2 mm+ / - 0.1mm
4. Minimum installation temperature: 110 degree
5. Max installation time: 60 seconds
6. Standard color: Clear
7. RoHS compliant
8. Packing: 100 pcs per bag (Others for special order)

Application

The heat shrinkable tube is widely used in the optical communication field,

for the euipment such as fiber optic splice closures, fiber distribution box, splice tray,

termination box, cross connection cabinet etc.

Applied to ODF

Applied to Fiber Distribution Box

Applied to Fiber Optic Splice Closure

Special packaging
