40MM OD2.7MM Fiber Optic Equipment Fiber Distribution Box Accessories Clear PE Fiber Sleeve

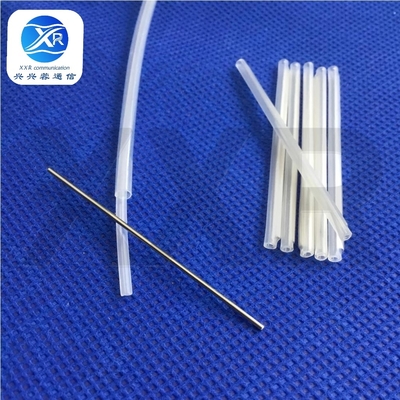

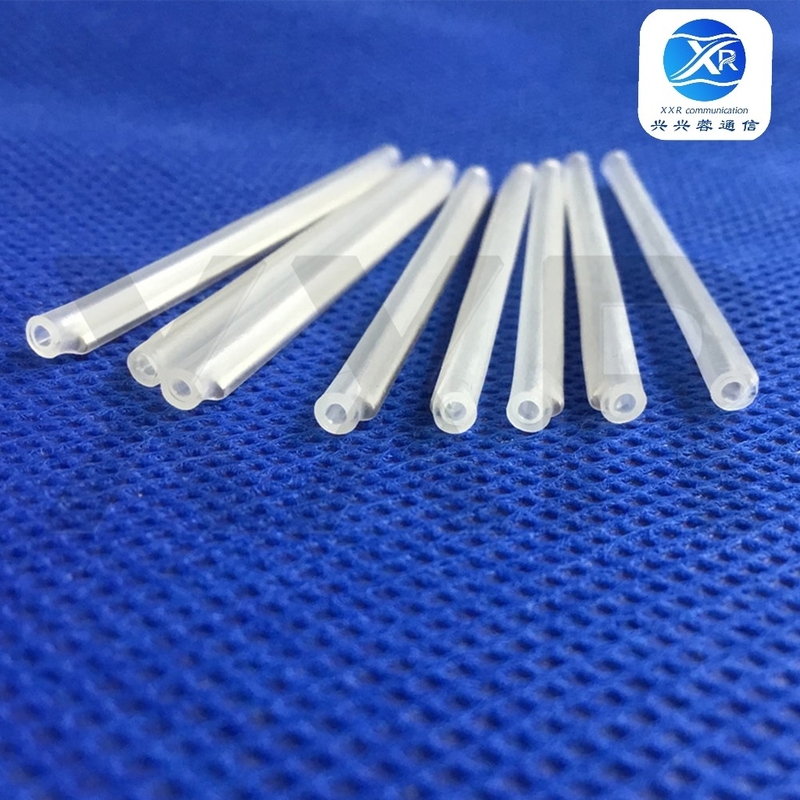

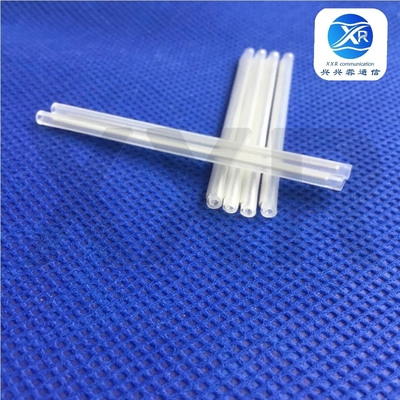

Fiber Sleeve, 40mm long, OD after recovery 2.7mm, clear PE material, it is with minimum recovery celsius temperature 120 degrees and operating temperature range from -45 degree to 100 degrees, it consists of heat shrink tube ( outer tube ),

fusion tube (inner tube) and 304 gradestainless steel strength member.

The Fiber sleeve is specially designed for single fiber splicing and protection, and installed in the optical closures such as fiber optic splice closure, street cabinet, cross connection cabinet, termination box, splice tray etc.

High quality fiber sleeve, designed for single fiber 250um or 900um

Features

. Protect the joint point of optical fiber

. Keep the transmisstion performance of optical fiber

. Keep the splice pioint with good resistance of humidity and teperature

. Easy to install and avoid damage to the optical fiber

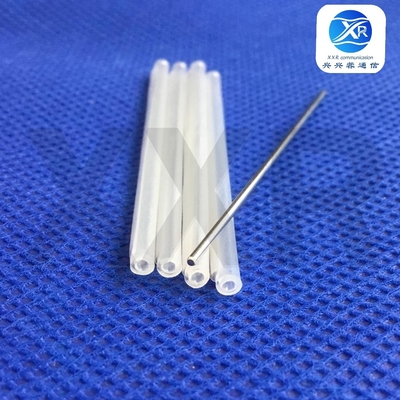

. Premium 304 grade stainless steel used to make strength member

. Strength member with ends polished & chamfered

. The fiber optic protector sleeve with ends fully sealed, keeping strength member fixed.

Pay attention to details

. Superior Quality: Sleeves shrink tightly toexclude air and hold the rod firmly preventing abrasion of delicate glass fibers;

. Attractive Outlook: SUS304 steel rod plays a good fix pisition in the middle of sleeve. The cutting edges are neat and beautiful.

. Ideal Transparency: Transparent casing for a clear vie of the fiber connection status

Product comparison

. Top quality sleeve with fully sealed ends

. Normal type sleeve with half-sealed ends

. The difference between the products is whether there is a gap between the internal and external tubes

40MM Fiber Distribution Box Sleeve

Product Specification

Application

The fiber sleeve is widely used in the optical communication field,

for the euipment such as fiber optic splice closures, fiber distribution box, splice tray,

termination box, cross connection cabinet etc.

Operation Steps

Step 1: Strip fiber jacket and bare fiber

Step 2: Fiber through heat shrinkable tube

Step 3: Cut fiber with a light cutter

Step 4: Dissolved optical fiber

Step 5: Heat processing

Step 6: Finished

Applied to ODF

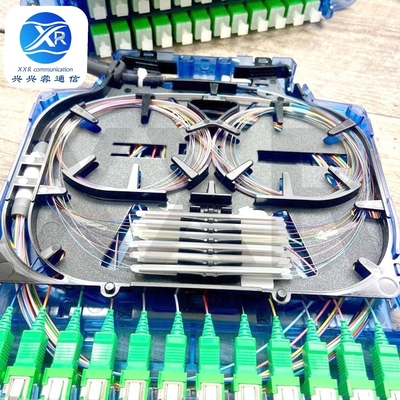

Applied to Fiber Distribution Box (FDB)

Applied to Fiber Optic Splice Closure

Different packaging

XXR Advantages

. Production capability: 2000,000 pieces per day

. Advanced fiber sleeve auto-assembly production line

. Extrusion production line for inner tube

. Strength member production lines

. Strength member processing equipment ( polishing & chamfering)

. Competitive price

. Short production and fast delivery

. DHL, UPS, TNT, FedEx etc. express for door to door, fast and safe

. Good after-sale service
