Africa Sample Free 100PCS 1.0x60mm Heat Shrinkable Tubing PE EVA Fiber Optic Protection Sleeve

USED FOR OPTICAL COMMUNICATION EQUIPMENT FOR FIBER SPLICING AND PROTECTION

Hot selling items

The Sleeves that telecom company most like

Easy installation

African Popular Fiber Optic Splice Closure Sleeves

Top Quality Sleeves With Ends Fully Sealed

Regular Items with over millions stock

Our Advantages

. Production capability: 2000,000 pieces per day

. Advanced fiber sleeve auto-assembly production line

. Extrusion production line for inner tube

. Strength member production lines

. Strength member processing equipment ( polishing & chamfering)

. Competitive price

. Short production and fast delivery

. DHL, UPS, TNT, FedEx etc. express for door to door, fast and safe

. Good after-sale service

Welcome to consult.

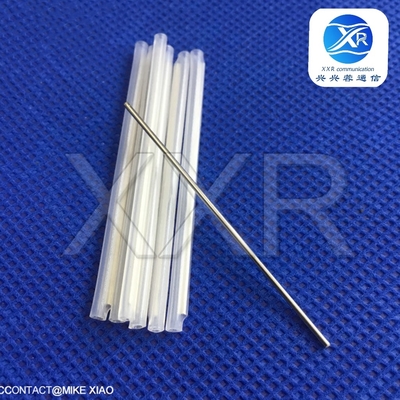

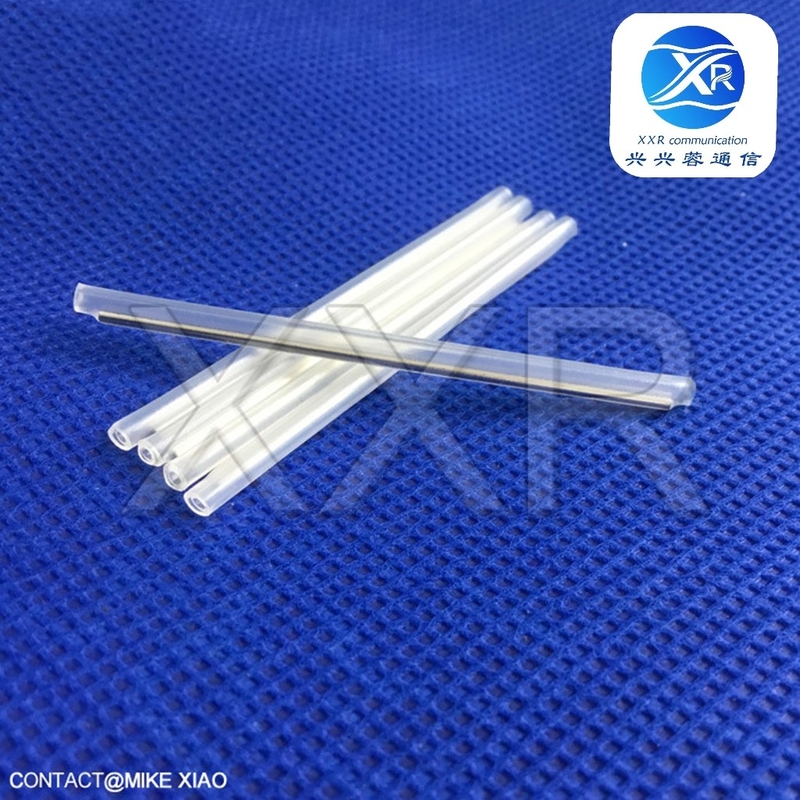

Fiber Optic Sleeve, 60mm long, OD contracted 3.0mm, clear material, it is with

minimum recovery celsius temperature 120 degrees and operating

temperature range from -45 degree to 100 degrees, it consists of heat

shrink tube ( outer tube ), fusion tube (inner tube) and 304 grade

stainless steel strength member.

The Fiber optic sleeve is specially designed for single fiber splicing

and protection, and installed in the optical closures such as fiber optic

splice closure, street cabinet, cross connection cabinet, termination box,

splice tray etc.

Hig quality fiber sleeve, designed for single fiber 250um or 900um

Features

. Protect the joint point of optical fiber

. Keep the transmisstion performance of optical fiber

. Keep the splice pioint with good resistance of humidity and teperature

. Easy to install and avoid damage to the optical fiber

. Premium 304 grade stainless steel used to make strength member

. Strength member with ends polished & chamfered

. The fiber optic protector sleeve with ends fully sealed, keeping strength member fixed.

Pay attention to details

. 304 grade stainless steel as strenght member

. Strength member with ends polished and chamfered

. Fully sealed ends keep strength member fixed.

Product comparison

. Top quality sleeve with fully sealed ends

. Normal type sleeve with half-sealed ends

. The difference between the products is whether there is a gap between

the internal and external tubes

60MM FTTH Box Sleeves

Product Specification

1. Outer diameter after recovery: OD3.0 mm + / - 0.1mm
2. Inner diameter before recovery: OD1.5+ / - 0.1mm
3. Steel rod diameter: OD 1.5 mm+ / - 0.1mm
4. Minimum installation temperature: 110 degree
5. Max installation time: 60 seconds
6. Standard color: Clear
7. RoHS compliant
8. Packing: 100 pcs per bag (Others for special order)

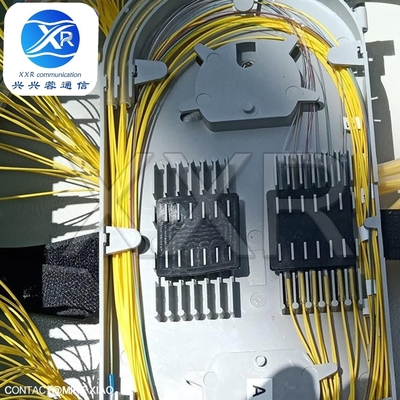

Application

The fiber optic sleeve is widely used in the optical communication field,

for the euipment such as fiber optic splice closures, fiber distribution box, splice tray,

termination box, cross connection cabinet etc.

Applied to ODF

Applied to Fiber Distribution Box (FDB)

Applied to Fiber Optic Splice Closure

Special packaging
