Strip Heat Shrinkable Tube Single / Double Ceramic 4-12 Cores

Name: Strip Heat Shrinkable Tube Single / Double Ceramic 4-12 Cores
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-40T
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-40T
MOQ:	5000
Delivery Time:	3-7 work days
Payment Terms:	L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SGS

Name:

Ceramic Strip Melting Protection Bushing

Mateal:

Eva

Color:

Clear

OD After Shrinking:

4.3-5.7

Packaging Details:

50/PCS

Supply Ability:

100000

Highlight:

Double Ceramic Heat Shrinkable Tube

EVA Strip Heat Shrinkable Tube

12 Cores Ribbon Fiber Optic Sleeve

Product Description

Strip heat shrinkable tube single ceramic/double ceramic 4-12 cores

Product Description

1, Ribbon Fiber Optic Sleeve is designed to protect ribbon splices of multi-fibers.
2, The ceramic strength member is used to supporting the splices fiber counts in a ribbon sleeves rang from 2 to 12 fibers.
3, The length is usually 40mm. If stronger protection is required, you can choose the ribbon sleeves with double ceramic rods.
4, We also manufacture sleeves with quartz rod instead of ceramic rod which is much clear to allow viewing the color of fiber after splicing.

Product Features

Multi-core fiber can be dissolved simultaneously
4, 6, 8 and 12 cores are optional.
It has good moisture-proof and environmental protection performance.
Transparent casing allows better connection before shrinkage.
It is easy to use and avoids damage to optical fiber during installation.
Standard specifications :(12/10/8/6/4 core) length 40MM, double ceramic or single ceramic.

specifications

Name	Fiber/Rod	Ceramic Rod	Outer Tube	lnner Tube	After Shrink
Name	Fiber/Rod	Spec.(mm)	Lenfth(mm)	I.D(mm)	O.D(mm)
Ribbon Fiber Optic Splice Sleeve	12F-1	4042	40	3.9*1.8	4.7*4.9
	8F-1	4042	40	3.2*1.5	4.0*4.6
	6F-1	4031.5	40	3.1*1.7	4.0*4.0
	4F-1	4031.5	40	3.2*1.6	3.6*3.8
	12F-2	4042	40	4.3*2.0	5.3*5.7
	6F-2	4031.5	40	2.7*1.6	4.3*4.5

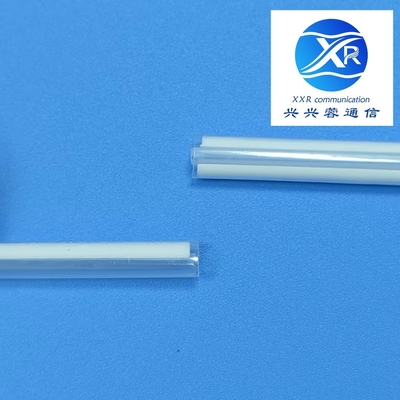

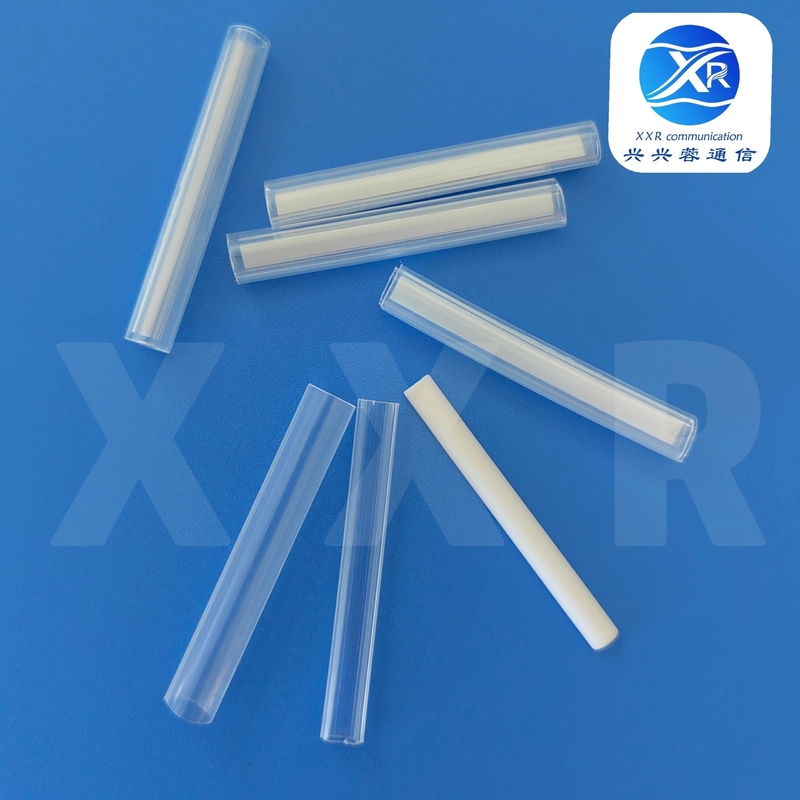

Strip Heat Shrinkable Tube Single / Double Ceramic 4-12 Cores 0

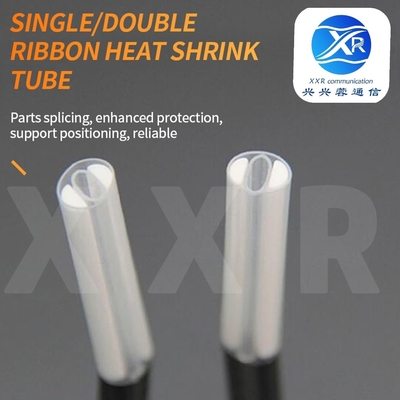

Strip Heat Shrinkable Tube Single / Double Ceramic 4-12 Cores 1

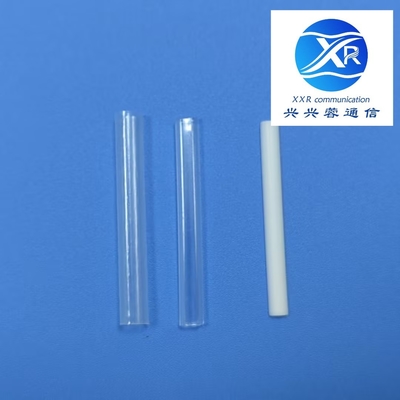

Strip Heat Shrinkable Tube Single / Double Ceramic 4-12 Cores 2
