Optical Communication Field Fiber Optic Cable Protection Sleeve White Color

Brand Name: XXR
Model Number: OFSS-60C
MOQ: 50,000 pcs
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS
Name:
FTTH Drop Cable Protection Sleeve
Tube Material:
PE/EVA
Specifications:
1.0*60 MM
Steel MateriSUS304al:
SUS304
Steel Diameter:
1.0MM
OD After Shrinking:
3.8MM
Product Color:
Clear
Suitable For:
FTTH Drop Cable Connecting Protection
Packaging Details:
100 pcs/pack
Supply Ability:
200K pcs/day
Highlight:

SUS304 Fiber Optic Cable Protection Sleeve

,

White Fiber Optic Cable Protection Sleeve

,

Communication Field Cable Protection Sleeve

Product Description
For Optical Communication Field Fiber Optic Cable Protection Sleeve White Color


Basic information of our product

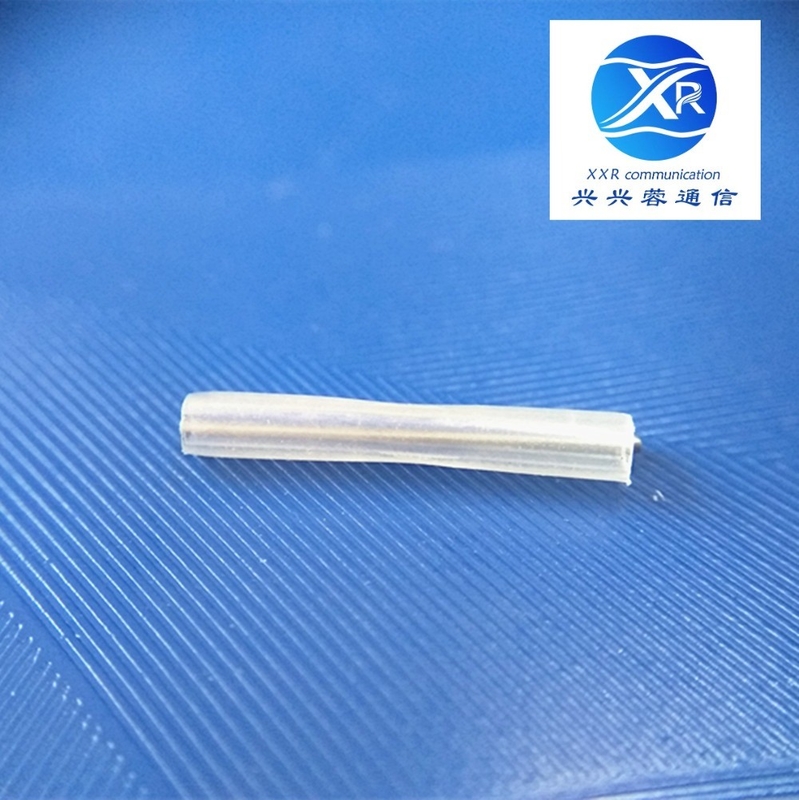

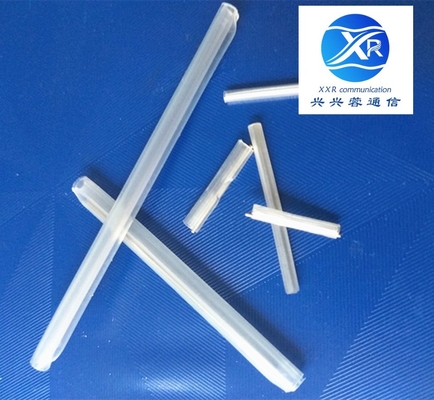

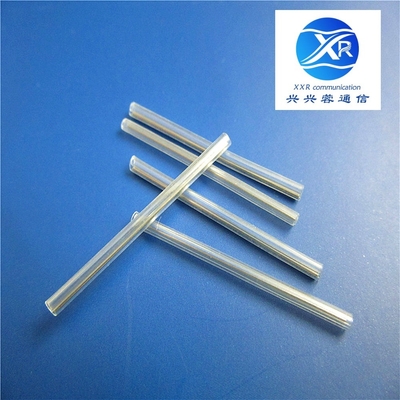

The sleeve consists of heat shrink tube as outer tube, hot-melt tube as inner tube
and stainless steel rod, it is a splicing component for enhancing protection or
supporting positioning of optical fiber splicing parts.


Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning, reliable.
Used for: FTTH optical cable joint protection box.


Specifications:

Part No. Spec. (mm)

Seel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

L.(mm)

ID

(mm)
OFSS-60C 1.0*60 1.0 60 3.8 60 3.8
OFSS-55C 1.0*55 1.0 55 3.8 55 3.8
OFSS-50C 1.0*50 1.0 50 3.8 50 3.8
OFSS-45C 1.0*45 1.0 45 3.8 45

3.8
OFSS-60C 1.0*60 1.0 60 3.5 60 3.8
OFSS-55C 1.0*55 1.0 55 3.5 55 3.8





Matching for:



Optical Communication Field Fiber Optic Cable Protection Sleeve White Color 0

Protection Box:

Optical Communication Field Fiber Optic Cable Protection Sleeve White Color 1
