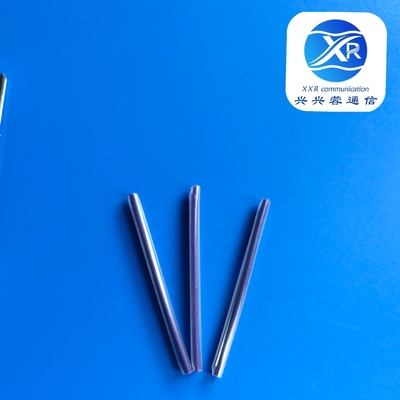

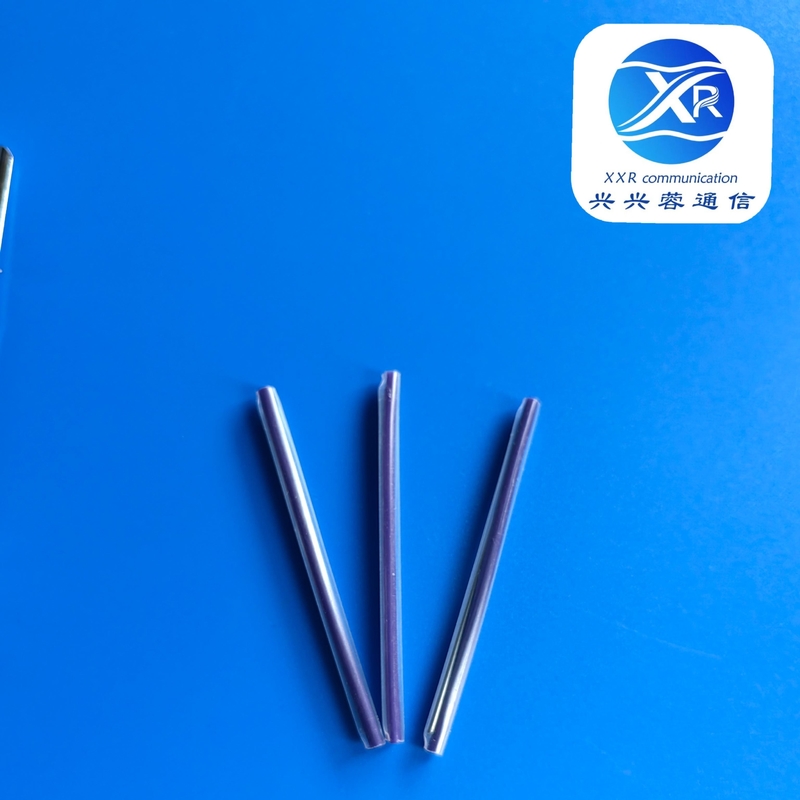

Purple Fiber Optic Heat Shrink Sleeve Fusion Splice Protection Sleeve 1.2*60mm

Name

Purple Fiber Optic Heat Shrink Sleeve Fusion Splice Protection Sleeve 1.2*60mm

Brand Name:	XXR
Model Number:	OFSS-60T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Features:

High Connectivity, Long Service Life,

Name:

6cm Light Purple Fiber Sleeve

Outer Tube:

Clear PE

Spec.:

1.2*60mm

Rod Diameter:

1.2mm

Inner Tube:

Blue

OD After Shrinking:

2.9mm

Packing:

12 Pcs

Suitable For:

Splice Closure

Function:

Reduced Fiber Loss

Packaging Details:

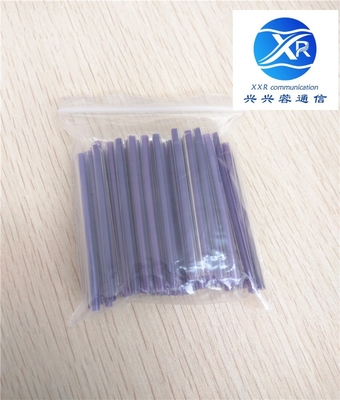

12 pcs/pack

Supply Ability:

200K pcs/day

Highlight:

Purple Fiber Optic Heat Shrink Sleeve

,

1.2mm Fiber Optic Heat Shrink Sleeve

,

60mm Fusion Splice Protection Sleeve

Product Description

2.9mm Fiber Optic Heat Shrink Sleeve , Purple Fusion Splice Protection Sleeve

60mm Purple Fiber Sleeve with OD=2.9mm

Fiber optic heat shrink Sleeve, the other name is called heat shrink tube, it is designed for the

enhancing protection of fiber splicing point, and supporing positioning.

It consists of heat shrink tube, hot fusion tube and steel rod. During the production, the fiber optic

heat shrink sleeve is preshrink at both ends for avoiding the movement of steel rod.

The fiber sleeve is usually 40mm, 45mm or 60mm, they are designed according to the splice tray

in the fiber closures.

The fiber casing can be customized according to the parameters and specifications provided by customers.

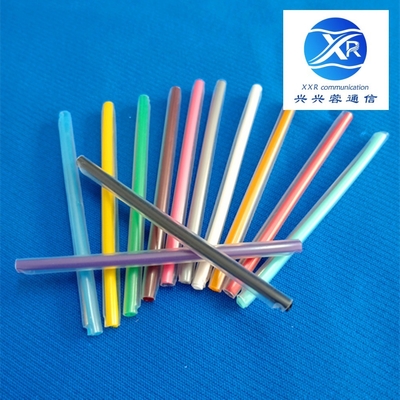

he outer tube is transparent, and the tubes with transparent inner layer are available in green, blue, orange, white, black, purple, etc.

The heat shrink sleeve is used in the FTTH & FTTx project.

XXR is a manufacturer, specialized in manufacturing all sorts of fiber heat shrink sleeves.

XXR is an ideal fiber sleeve supplier for all fiber closures manufacturer.

XXR fiber sleeves are widely used for termination box, splice tray and cross-connecting cabinet.

Specification:

Keywords	Purple fusion fiber heat shrink sleeves
Brand Name	XXR
Steel rod diameter	1.2mm
Conventional length	60mm/45mm/40mm
Color	Custom
Consists	Heat shrink tube, hot fusion tube and steel rod
Function	Enhancing protection of fiber splicing point
Application	Termination box, splice tray
Service	OEMODM

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

Purple Fiber Optic Heat Shrink Sleeve Fusion Splice Protection Sleeve 1.2*60mm 0
