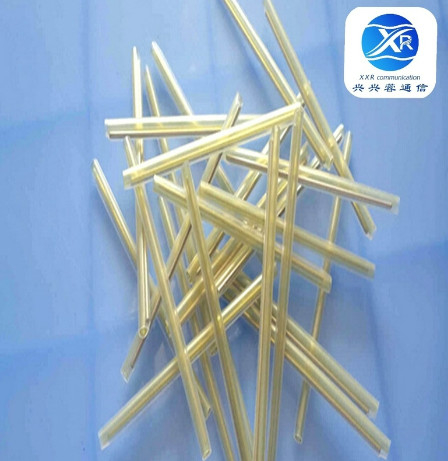

Heat Shrinkable Fiber Optic Fusion Splicing Protection Sleeve

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

For Fiber Optic Patch Panels/ODF/Fiber Distribution Box

Cross Connect Cabinet/Splice Tray/Splice Closures

/40mm long / PE Tube/304 Stainless Steel /OD 3.0mm

Steel Rod Dia.1.5mm

Description:

• Optical fiber splicing protective sleeve, also known as optical fiber heat shrink tube. It is designed to enhance protection or support the positioning of fiber splicing.
• As FTTH and FTTx projects, optical fiber splicing protective sleeve is widely used in the field of optical communication.
• As the world's leading manufacturer of optical fiber splice protective sleeves, XXR is committed to manufacturing optical fiber splice protective sleeves such as optical fiber junction boxes/ODFs, junction boxes, optical fiber splice boxes, optical fiber distribution boxes, and cross connection cabinets.
• This product is composed of cross-linked polyolefin heat shrinkable tube, hot melt tube and stainless steel needle. It is specially designed to protect the optical fiber enclosure.
• It is the most reliable method to protect the connection point and improve the mechanical strength.
• Easy to operate, reducing the risk of fiber damage during installation.
• Transparant tube, it is easy to see the closed state of optical fiber.
• The sealing structure makes the sealing have good temperature resistance and moisture resistance.

Characteristics:

. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS

Technical Data:

Composition:

Physical Pic.:

Application:
