products details

Home Products

Fiber Optic Splice Sleeve

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

Name

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

Brand Name:	XXR
Model Number:	OFSS-40T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

Fiber Hot Fusion Sleeve

Brand:

XXR

Spec.:

1.5*40*304

Use:

FTTx & FTTH

Material:

PE

Length:

40MM

Color:

Clear

OD After Shrink:

3.0mm

Used For:

Fiber Splice Closure

Packing:

100 Pcs

Packaging Details:

100 pcs

Supply Ability:

200K pcs/day

Highlight:

1.57Inch Heat Shrink Splice Protector

,

Heat Shrink Splice Protector 1.5mm

,

1.5mm Fiber Optic Sleeve Protector

Product Description

Heat Shrinkable Fiber Optic Fusion Splicing Protection Sleeve

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

For Fiber Optic Patch Panels/ODF/Fiber Distribution Box

Cross Connect Cabinet/Splice Tray/Splice Closures

/40mm long / PE Tube/304 Stainless Steel /OD 3.0mm

Steel Rod Dia.1.5mm

Description:

Optical fiber splicing protective sleeve, also known as optical fiber heat shrinkable tube. They are designed for enhanced protection or to support positioning of fiber splices.
Optical fiber splicing protective sleeves are widely used in the field of optical communications as FTTH and FTTx projects.
As the world's leading manufacturer of fiber optic connector protection sleeves, XXR is committed to manufacturing fiber optic junction boxes/ODFs, junction boxes, fiber optic splice closures, fiber optic distribution boxes, cross-connect cabinets and other fiber optic connector protection sleeves.
This product is composed of cross-linked polyolefin heat-shrinkable tube, heat-melt tube and stainless steel needle. It is specially designed to protect the fiber optic housing.
Protecting the connection point and improving the mechanical strength is the most reliable way to protect the welding.
Easy handling reduces the risk of fiber damage during installation.
Transparant tube, it is easy to see the closed state of the fiber.
The sealing structure makes the seal have good temperature resistance and moisture resistance.

Production capability: 180,000 pcs/day	Payment: T/T, Western Union, others
Delivery: By Air via DHL, FedEx, UPS, TNT, EMS etc or By Sea	Delivery time: 5-7 days

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

Characteristics:

. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS

Technical Data:

Property	Criterion	Test Method		Value
Longitudinal change	-5%~5%	ASTM D2671		PASS
Tensile strength	≥10.4MPa	ASTM D2671		PASS
Elongation at break	≥200%	ASTM D2671		PASS
Volume resistivity	≥10¹⁴ Ω·cm	IEC 60093		PASS

Composition:

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 0

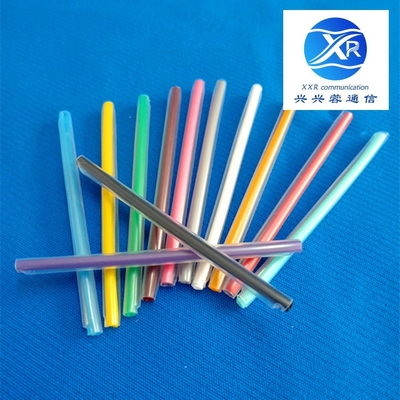

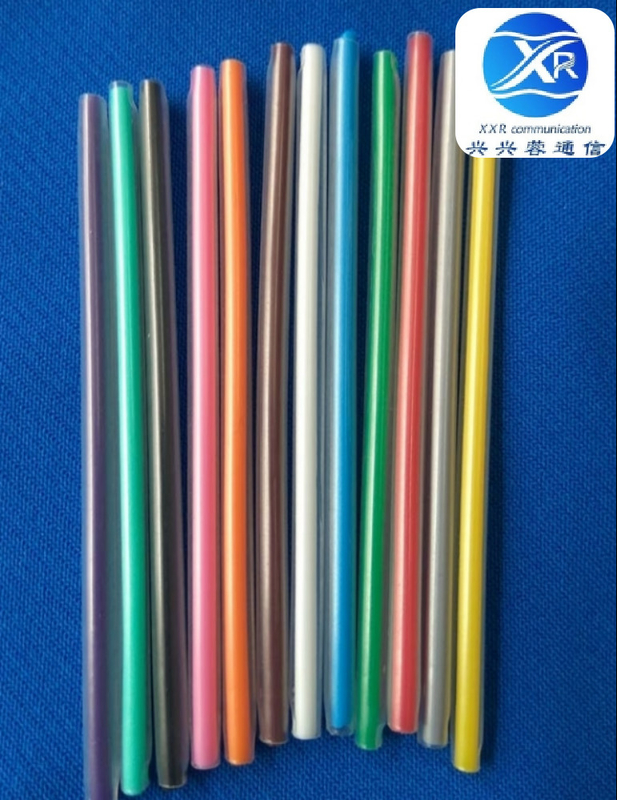

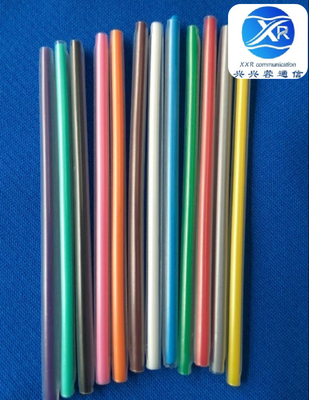

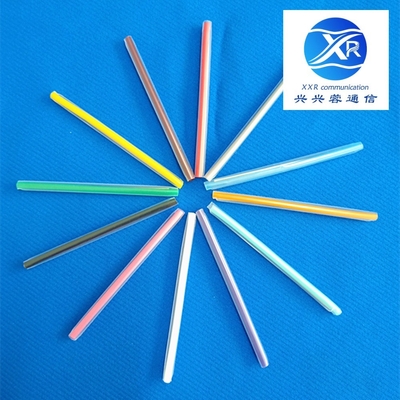

Physical Pic.:

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 1

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 2

Application:

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 3

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 4

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 5

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 6

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 7

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic 8
