Heat Shrinkable Fiber Optic Splice Protection Sleeves For Termination Closures

Name: Heat Shrinkable Fiber Optic Splice Protection Sleeves For Termination Closures
Brand: Chengdu Xing Xing Rong Communication Technology Co., Ltd.
SKU: OFSS-60T
Price: 4.10 USD
Availability: InStock

Brand Name:	XXR
Model Number:	OFSS-60T
MOQ:	50,000 pcs
Price:	Negotiable
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS

Name:

60mm Colorfull Heat Shrinkable Sleeve

Outer Tube:

Clear PE

Spec.:

1.0*60 MM

Rod Diameter:

1.0MM

Inner Tube:

Blue

OD After Shrinking:

2.5MM

Packing:

12 Pcs

Suitable For:

Termination Closures

Packaging Details:

12 pcs/pack

Supply Ability:

200K pcs/day

Highlight:

1MM Fiber Optic Splice Protection Sleeves

Heat Shrinkable Splice Protection Sleeves

Termination Closures Heat Shrinkable Sleeves

Product Description

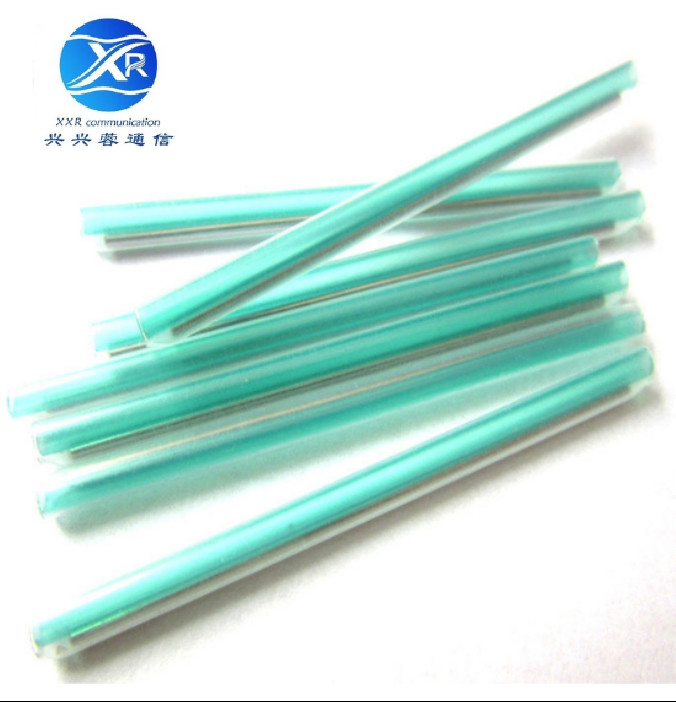

60 MM Blue Fiber Optic Heat Shrink Sleeve

The fiber optic ferrule is usually 40mm, 45mm or 60mm, according to the splicing tray design
in the fiber optic housing.
Heat shrink tubing is used for FTTH and FTTx projects.
XXR is a professional manufacturer of all kinds of fiber heat shrinkable tubing.
XXR is the ideal fiber optic ferrule supplier for all fiber optic closure manufacturers.
XXR fiber optic ferrules are widely used in terminal boxes, splice trays and cross-connect cabinets.

Optical fiber heat shrinkable sleeve, another name is heat shrinkable tube, it is for
Enhances protection and supports location at fiber splice points.
It consists of heat-shrinkable tubes, hot-melt tubes and steel rods. During the production process, the fiber
Both ends of the heat shrinkable sleeve are pre-shrunk to avoid rod movement.

Specification:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2
