Fiber Loose Tube
Created with Pixso. FTTH Fiber Loose Tube Hytrel Material Fiber Optic Buffer Tube

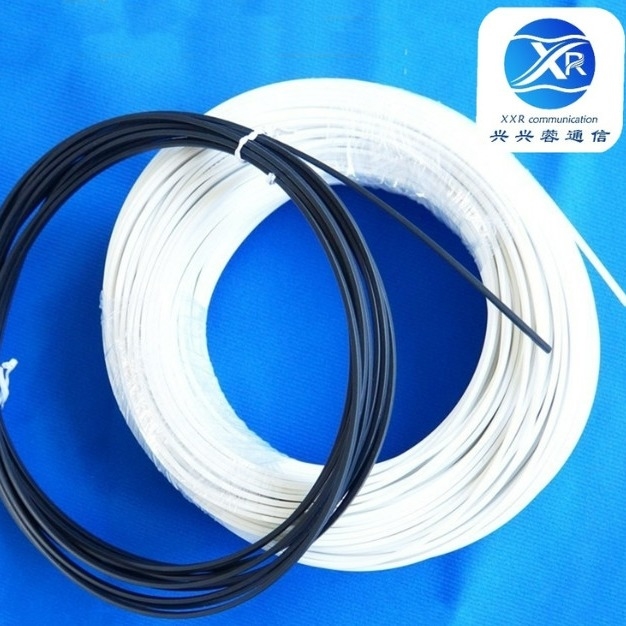

FTTH Fiber Loose Tube Hytrel Material Fiber Optic Buffer Tube

Brand Name: XXR
Model Number: Hytrel
MOQ: 1 reel
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
SGS
Name:
Buffertuber
Material:
Hytrel
Color:
White,orange,yellow, Green Etc.
Wall Thickness:
0.2MM
I.D:
0.5 MM
OD:
0.9MM
Use:
FTTH
Suitable For:
Bare Fiber
Packaging Details:
2reels/pallet
Supply Ability:
1000000 Kilometer/Kilometers per Month
Highlight:

Hytrel FTTH Fiber Loose Tube

,

Loose Fiber Optic Buffer Tube

,

Flame Retardant Fiber Loose Tube

Product Description
FTTH Fiber Loose Tube , Hytrel Fiber Optic Buffer Tube

Features:
1. Achieve the highest flame retardant grade.
2. It has the characteristics of high strength, high elasticity, oil resistance, acid and alkali resistance, high temperature resistance, radiation resistance, excellent dynamic mechanical property, no acid gas release, no corrosion of equipment, personal health and safety, etc.
3. Perfect performance can be maintained for a long time at 85°C.

Application:
1. Used to protect all kinds of single-coated optical fiber or optical fiber ribbon.
2. Used as a protective tube for optical transmission equipment and exposed optical fibers at the end of components.
3. Protect bare fiber optics from mechanical damage during fiber handling and any subsequent conditions.
4. Effectively prevent water vapor, fuel, acid, alkali and solvents from eroding the optical fiber, and ensure the transmission performance of the optical fiber.

Fiber Loose Tube,also called buffertuber, it is a polypropylene or nylon sleeve that protects the optical fiber from internal stress and external lateral pressure.
Technical data:
Tensile strength  13.6 Mpa
Elongation at break 500%
Tear strength 53.2KN/m
Heat shrinkage ≤0.5%
OD 0.9±0.05 mm
ID 0.45±0.03 mm
Working temperature -40 ℃ - +85 ℃
 FTTH Fiber Loose Tube Hytrel Material Fiber Optic Buffer Tube 0
FTTH Fiber Loose Tube Hytrel Material Fiber Optic Buffer Tube 1
