Fiber Protection Tube
Created with Pixso. Round Bare Fiber Protection Tube 5mm Fiber Optic Cable Protection Tube
Name
  • Name
  • Name
  • Name

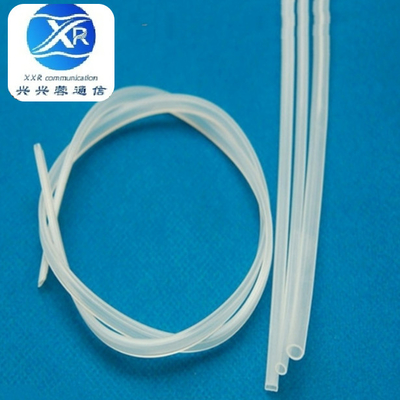

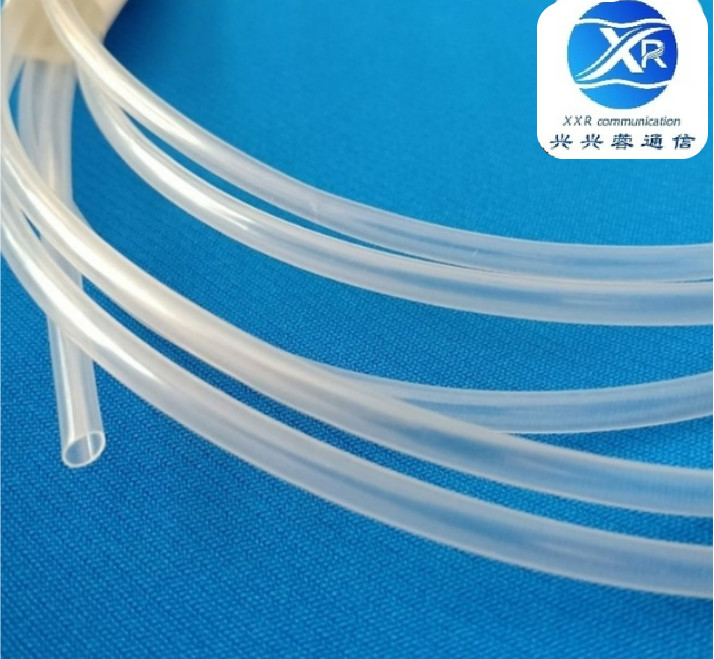

Round Bare Fiber Protection Tube 5mm Fiber Optic Cable Protection Tube

Brand Name: XXR
Model Number: BFPT
MOQ: 1 roll
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS
Material:
Cross-linked Polyolefin
Spec.:
3*5 MM
Shape:
Round/Rectangular/Oval
Operating Temperature:
-55 ℃ ~ +100 ℃
Min.Shrink Temperature:
120 ℃
Atmospheric Pressure:
70 ~ 106 Kpa
Color:
Clear
Suitable For:
Optical Fiber Splice Closure
Packaging Details:
100 / 200 meters/ roll
Supply Ability:
1000000 Meters per Week
Highlight:

Round Bare Fiber Protection Tube

,

Round Fiber Protection Tube 5mm

,

Bare Optic Cable Protection Tube

Product Description

Bare Fiber Protection Tube , 5mm Fiber Optic Cable Protection Tube

Bare fiber protection tube, designed to protect the fiber stripped from the housing, mainly used in ODF, fiber distribution box, fiber splice box, fiber cross-connect cabinet.

  1. Outer diameter: 5MM
  2. Range: ODF fiber or bare fiber
  3. Opaque casing with strong protection
  4. Strong toughness, easy operation, reducing the risk of fiber damage during installation;
  5. High working temperature, wide range of use
  6. Various shapes, suitable for all kinds of bare fiber
  7. Working temperature range
  8. Not a flame retardant.


Feature: clear color, not easy to break, with excellent performance.
Technical data:
Properties Test method Value
Tensile strength (MPa) ASTM D 2671 ≥10.4
Elongation at break (%) ASTM D 2671 ≥200
Withstand voltage (300v) UL 224 1500V,1MIN
Dielectric strength (KV/MM) ASTM D 149 ≥15
Volume resistivity (Ω.cm) IEC 60093 ≥1014
Length change ratio (%) ASTM D 2671 ±5%
 Round/Rectangular/Oval Shape

 Round Bare Fiber Protection Tube 5mm Fiber Optic Cable Protection Tube 0



Round Bare Fiber Protection Tube 5mm Fiber Optic Cable Protection Tube 1



Round Bare Fiber Protection Tube 5mm Fiber Optic Cable Protection Tube 2
