| Brand Name: | XXR |
| Model Number: | 12F-OFSS-40 |
| MOQ: | 50,000 PCS |
| Price: | Negotiable |
| Delivery Time: | 5-7 DAYS |
| Payment Terms: | T/T, L/C |

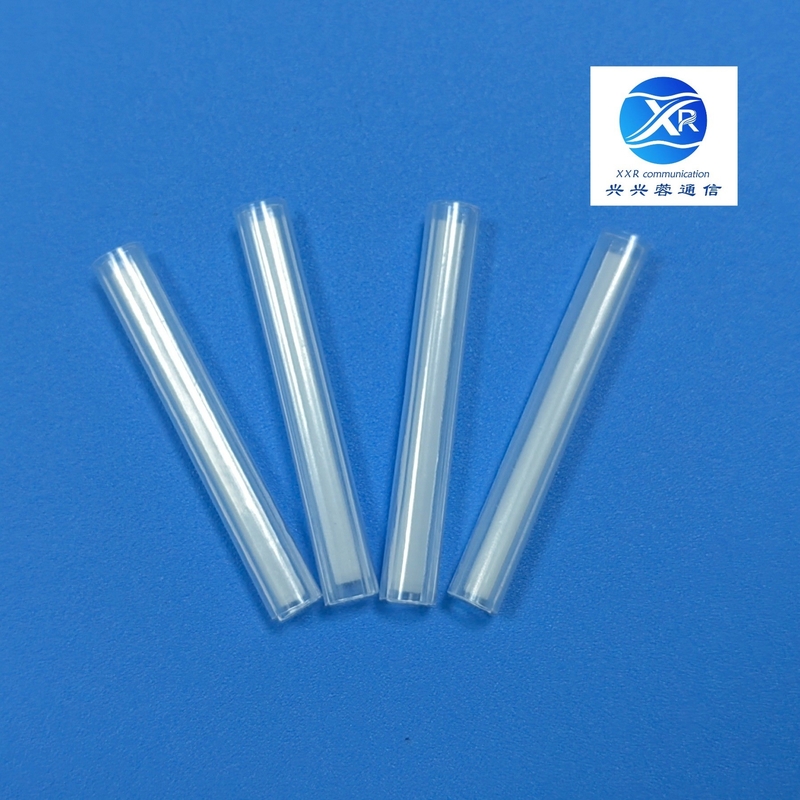

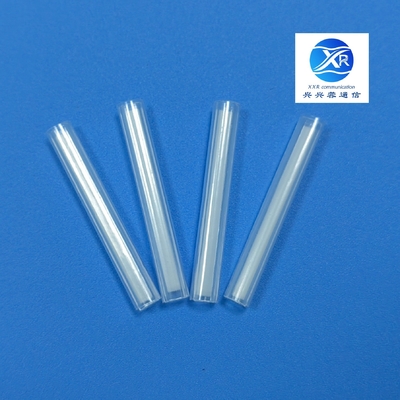

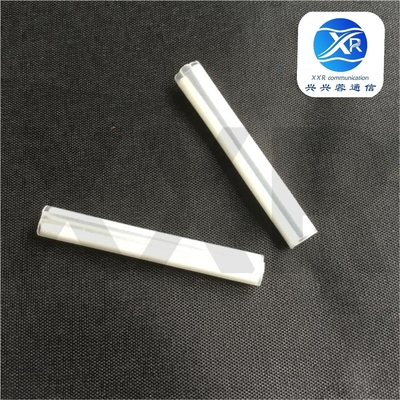

Specially designed for optical fiber splicing and sealing.
According to the fiber, the tape sleeve can be divided into 4 cores, 6 cores, 8 cores and 12 cores.
It is a splice assembly used for enhanced protection or to support positioning of fiber optic splice components.
In order to enhance its property, people use single or double porcelain for assembly.
Application: field of optical communication.
Features: Part splicing, enhanced protection, support positioning, reliable.

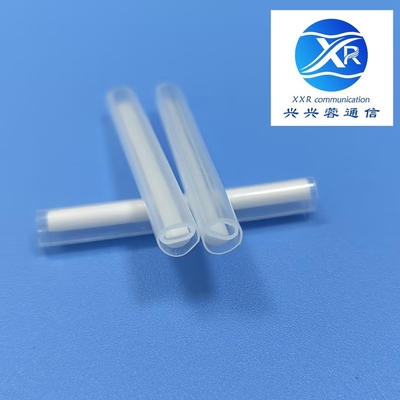

Components: heat shrink tubing, fusion tubing and ceramic rods.
Used in: Optical communication passive products in FTTH and FTTx projects.

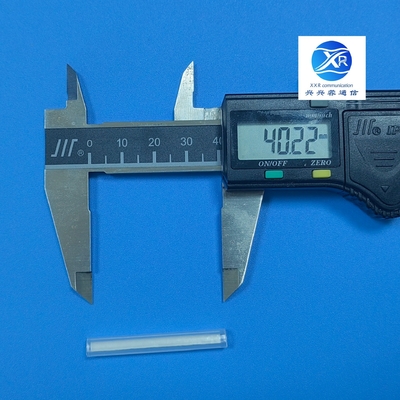

| Part No. | L. (mm) |
Steel rod dia.(mm) |
Outer tube L.(mm) |
OD after shrinking (mm) |
Inner tube I.D.(mm) |
| 4F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.6*3.6 | 3.2*1.6 |
| 6F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.7*3.7 | 3.1*1.7 |
| 8F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.7*4.1 | 3.2*1.5 |
| 12F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.8*4.35 | 3.9*1.8 |
| 6F-OFSS-40 | 40±0.05 | Double-3*1.5 | 40±0.05 | 4.7*4.7 | 2.7*1.6 |
| 12F-OFSS-40 | 40±0.05 | Double-4*2 | 40±0.05 | 5.6*5.4 | 4.3*2.0 |
