4 Cores Fusion Splice Protection Sleeves Heat Shrink FTTx

Brand Name: XXR
Model Number: 4F-OFSS-40M
MOQ: 50,000 Pcs
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS
Name:
4 Cores Ribbon Fiber Sleeve
Inner Tube:
EVA
Outer Tube:
PE
Rod:
Single Ceramic
Length:
40 MM
Shrunk OD:
3.6*3.6 MM
Pcs/pack:
24
Color:
Transparent
Packaging Details:
24 pcs/day
Supply Ability:
200K pcs/day
Highlight:

FTTx Fusion Splice Protection Sleeves

,

4Cores Fusion Splice Sleeves

,

Heat Shrink Fiber Splice Sleeve

Product Description

40mm long 4 cores ribbon fiber optic protection sleeve


  • This ribbon fiber protection sleeve is suitable for the splicing of 4 ribbon fibers.
  • Protect the contacts without affecting the light guiding performance.
  • Easy to use with transparent sleeves: sleeves are suitable for connection between cables. Inside the tube, the splices can be easily seen.
  • Ease of operation: reduces the risk of damaging fibers.
  • High strength, no magnetic interference, insulation, transparency, light weight.
  • Fixed joints, increased mechanical strength: with retarder and insulating properties.



Features: parts splicing, enhanced protection, supporting positioning, reliable.



Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.


Part No. L. (mm)

Steel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

I.D.(mm)
4F-OFSS-40 40±0.05 Single-3*1.5 40±0.05 3.6*3.6 3.2*1.6
6F-OFSS-40 40±0.05 Single-3*1.5 40±0.05 3.7*3.7 3.1*1.7
8F-OFSS-40 40±0.05 Single-4*2 40±0.05 4.7*4.1 3.2*1.5
12F-OFSS-40 40±0.05 Single-4*2 40±0.05 4.8*4.35 3.9*1.8
6F-OFSS-40 40±0.05 Double-3*1.5 40±0.05 4.7*4.7 2.7*1.6
12F-OFSS-40 40±0.05 Double-4*2 40±0.05 5.6*5.4 4.3*2.0

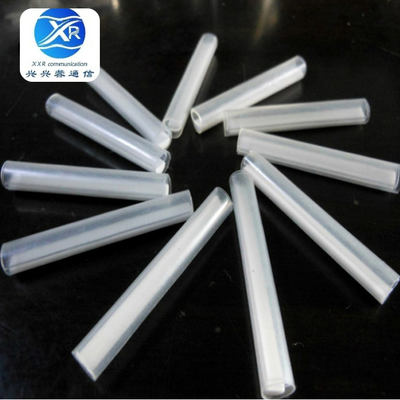

4 Cores Fusion Splice Protection Sleeves Heat Shrink FTTx 0

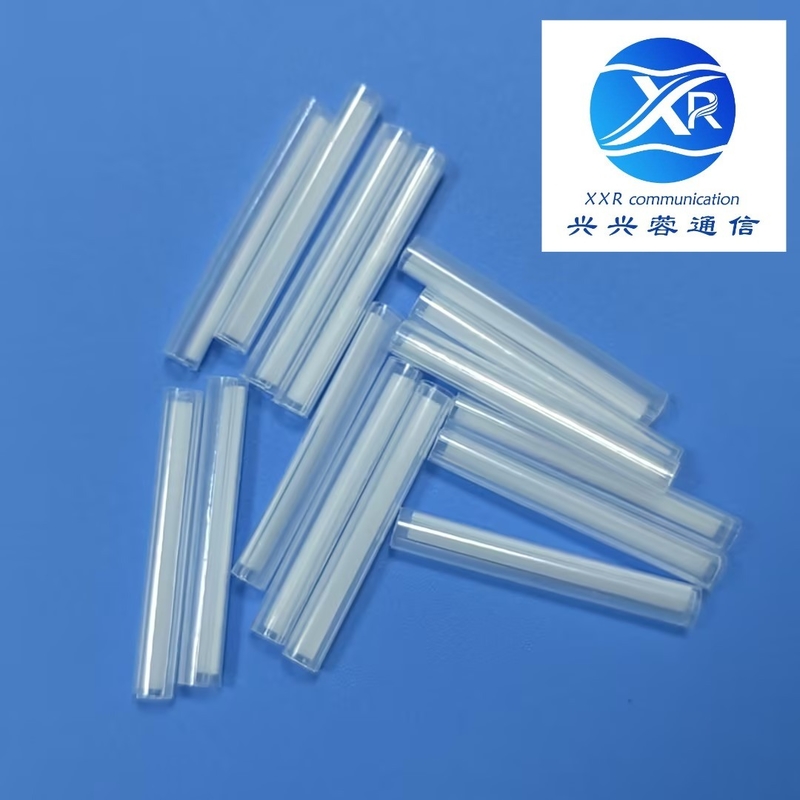

4 Cores Fusion Splice Protection Sleeves Heat Shrink FTTx 1
