Product Description:

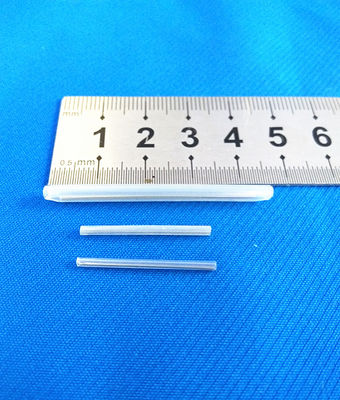

The Fiber Optic Splice Sleeve is an essential component designed to provide reliable protection and insulation for fiber optic cable splices. Engineered with precision and high-quality materials, this product ensures the integrity and performance of fiber optic networks by safeguarding delicate fiber connections from environmental and mechanical damage. The Fiber Optic Cable Protection Sleeve is a vital accessory for telecommunications, data centers, and any application that relies on fiber optic technology for high-speed data transmission.

One of the key features of this Fiber Optic Cable Protection Sleeve is its exceptional volume resistivity, rated at ≥10^14Ω.cm. This high volume resistivity ensures outstanding electrical insulation properties, preventing any unwanted electrical interference or conduction that could compromise the signal quality of the fiber optic cables. This makes the splice sleeve ideal for environments where electrical insulation is critical to maintaining the performance and reliability of fiber optic systems.

The protection type of this Fiber Optic Splice Sleeve is heat shrink, which offers a secure and durable seal around the splice area. The heat shrink design allows the sleeve to contract tightly when heated, conforming perfectly to the fiber and splice protection elements inside. This process not only provides a robust mechanical protection but also offers excellent resistance against moisture, dust, and other contaminants that could potentially damage the fiber optic connection. The heat shrink method is widely recognized for its effectiveness in maintaining the long-term stability and durability of fiber optic splices.

Constructed from EVA (Ethylene Vinyl Acetate), the material choice for this Fiber Optic Cable Protection Sleeve combines flexibility, toughness, and excellent environmental resistance. EVA is known for its ability to withstand various temperature ranges and its resistance to UV radiation, chemicals, and physical stress. This ensures that the splice sleeve can perform reliably in diverse installation environments, whether indoors or outdoors, and under varying climatic conditions.

The model number for this product is Splice Sieeve, a designation that reflects its specialized purpose and design. This model is tailored to meet the specific needs of fiber optic cable splicing applications, providing a balance of ease of installation, protection, and durability. The sleeve is available in diameters of 1.2mm and 1.5mm, accommodating different fiber optic cable sizes and ensuring a snug fit that enhances protection and minimizes any potential movement or strain on the splice.

Overall, the Fiber Optic Cable Protection Sleeve is a highly reliable solution for maintaining the integrity of fiber optic connections. By combining advanced material properties such as EVA, high volume resistivity, and heat shrink technology, this product offers superior protection against environmental hazards and mechanical stresses. It is an indispensable tool for technicians and engineers working in fiber optic network installations, repairs, and maintenance.

In summary, the Fiber Optic Cable Protection Sleeve ensures that fiber optic splices are safeguarded with high-quality insulation and mechanical protection. Its heat shrink design, EVA material composition, and excellent electrical insulation properties make it a top choice for enhancing the durability and performance of fiber optic networks. Whether you are working on telecommunications infrastructure, data centers, or other fiber optic applications, this splice sleeve provides the dependable protection needed to maintain optimal signal transmission and network reliability.

Features:

• Product Name: Fiber Optic Splice Sleeve
• Model Number: Splice Sieeve
• Type: Insulation Sleeving
• Operating Temperature Range: -45 to 100 °C
• Compatibility: Suitable for Single-mode and Multi-mode Fibers
• Heat Shrink Ratio: 2:1 for secure and reliable protection
• Provides excellent Fiber Optic Cable Protection Sleeve to ensure durability
• Designed for effective use as Fiber Optic Splice Sleeves in various applications

Applications:

The XXR-FIBER PROTECTION SPLICE SLEEVE, model 0.5*35MM, is an essential component designed for protecting fiber optic splices in a variety of applications. Manufactured in China and certified with ROHS and REACH standards, these Fiber Optic Splice Sleeves are engineered to ensure durability and reliability in fiber optic network installations. With a minimum order quantity of 50,000 pieces and a supply ability of 500,000 pcs per day, this product is ideal for large-scale projects and professional use.

These Fiber Optic Splice Sleeves are widely used in telecommunications, data centers, and network infrastructure projects, where secure and efficient fiber fusion splicing is crucial. The fully sealed ends and heat shrink protection type provide excellent environmental resistance, ensuring fiber connections remain stable under harsh conditions. Operating within a temperature range of -45 to 100 °C, these splice sleeves can withstand extreme environmental factors, making them suitable for both indoor and outdoor applications.

Typically, the Fiber Optic Splice Sleeve is applied during the fiber fusion splicing process, where the Fiber Fusion Splicer fuses two fiber optic cables to create a continuous optical path. After fusion splicing, the sleeve is positioned over the splice and heat shrunk at temperatures between 90 and 120 °C, with a heat shrink ratio of 2:1, to provide mechanical protection and prevent moisture ingress. This makes it an indispensable accessory for fiber optic technicians and engineers working on network deployments, maintenance, and repairs.

Packaging details include 100 pieces per bag, facilitating convenient handling and inventory management at job sites. The product’s delivery time is approximately 5 work days, and payment terms are flexible, including EXW, FOB, and CIF options. Pricing is negotiable, catering to various procurement needs and budget considerations.

In summary, the XXR-FIBER PROTECTION SPLICE SLEEVE offers a robust, reliable, and efficient solution for fiber optic splice protection. Its high-quality construction, compliance with international standards, and compatibility with Fiber Fusion Splicers make it an excellent choice for telecommunications providers, network integrators, and any fiber optic installation projects requiring long-lasting splice protection.

Customization:

Introducing the XXR-FIBER PROTECTION SPLICE SLEEVE, model number 0.5*35MM, a premium Fiber Optic Cable Protection Sleeve designed to ensure secure and reliable fiber optic connections. Manufactured in China, this Fiber Optic Splice Sleeve is certified with ROHS and REACH, guaranteeing compliance with international quality and environmental standards.

Our Fiber Optic Cable Protection Sleeve features a durable EVA material with a diameter of 1.2/1.5mm and fully sealed ends type, providing excellent protection and insulation. With a tensile strength of ≥ 50N and volume resistivity of ≥10^14Ω.cm, it ensures both mechanical robustness and electrical insulation for your fiber optic cables.

We offer flexible product customization services with a minimum order quantity of 50,000 pieces. The packaging details include 100pcs per bag, and we maintain a strong supply ability of 500,000 pieces per day to meet your bulk requirements. Delivery time is typically 5 work days, and payment terms are negotiable including EXW, FOB, and CIF options.

Price is negotiable to accommodate your specific order needs. Trust the XXR-FIBER PROTECTION SPLICE SLEEVE to protect your fiber optic connections effectively and enhance the longevity of your fiber optic network installations.
